CLEARANCE LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure described below is for the LH side.

PROCEDURE


  1. REMOVE FRONT BUMPER ASSEMBLY

    for Standard: Click here

    for Sport Package: Click here

  2. REMOVE CLEARANCE LIGHT ASSEMBLY

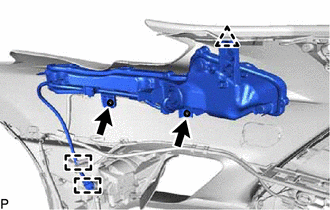

    1. A011NJI

      Disengage the 2 clamps.

    2. Remove the clip.

    3. Remove the 2 screws and clearance light assembly.
