FOG LIGHT ASSEMBLY COMPONENTS

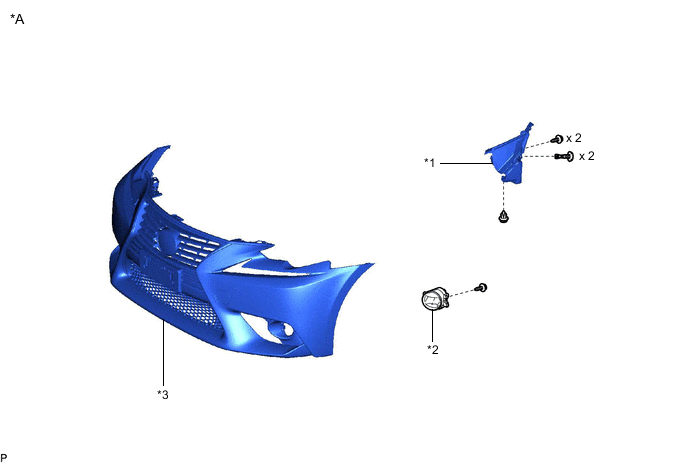

ILLUSTRATION
| *A | for Standard | - | - |
| *1 | AIR INTAKE DUCT | *2 | FOG LIGHT ASSEMBLY |
| *3 | FRONT BUMPER ASSEMBLY | - | - |

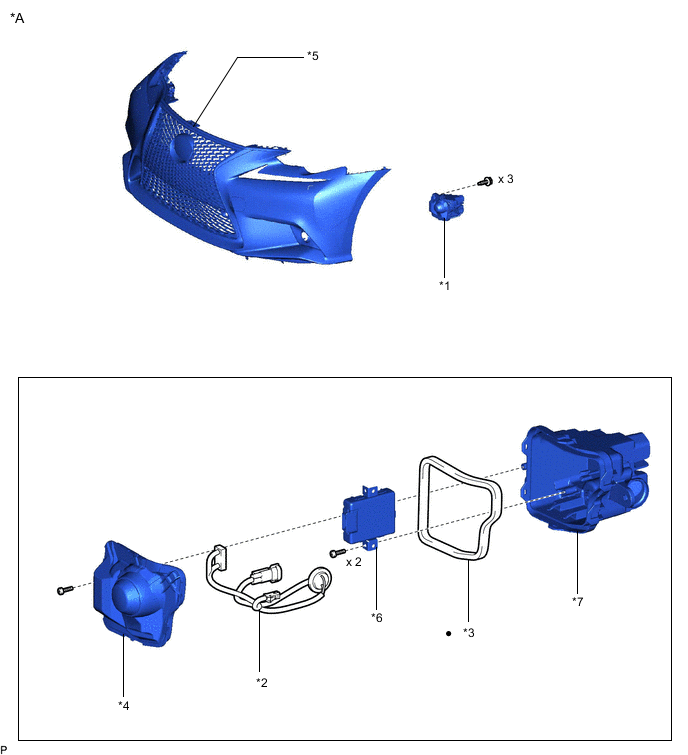

ILLUSTRATION
| *A | for Sport Package | - | - |
| *1 | FOG LIGHT ASSEMBLY | *2 | FOG LIGHT CORD |
| *3 | FOG LIGHT GASKET | *4 | FOG LIGHT LENS |
| *5 | FRONT BUMPER ASSEMBLY | *6 | LIGHT CONTROL LED ECU |
| *7 | HOUSING | - | - |
| ● | Non-reusable part | - | - |
