REAR LIGHT ASSEMBLY COMPONENTS

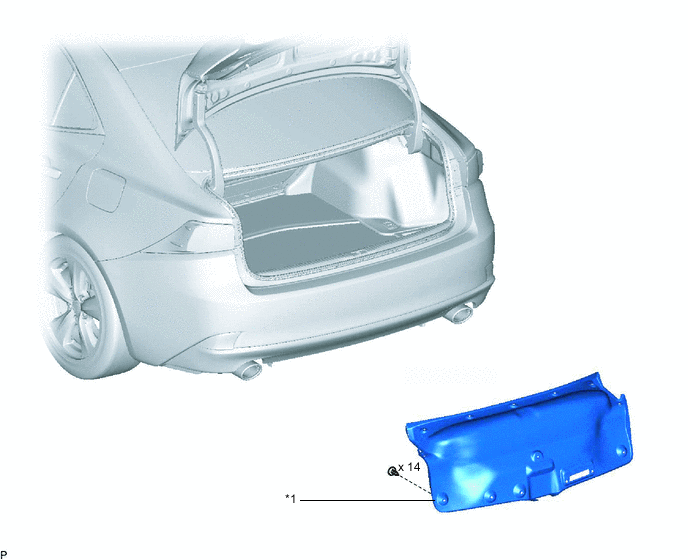

ILLUSTRATION
| *1 | LUGGAGE COMPARTMENT DOOR COVER | - | - |

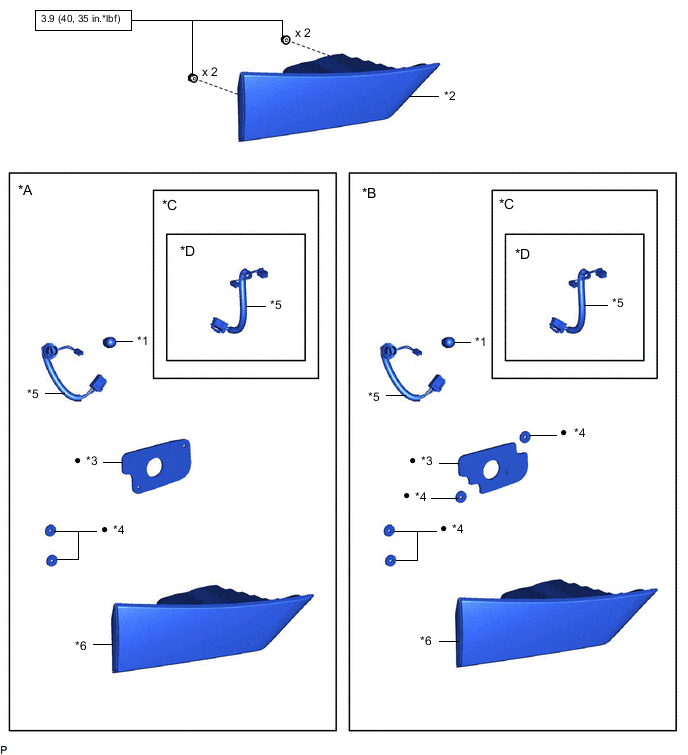

ILLUSTRATION
| *A | Type A | *B | Type B |
| *C | w/ Rear Fog Light | *D | for Driver Side |
| *1 | BACK-UP LIGHT BULB | *2 | REAR LIGHT ASSEMBLY |
| *3 | REAR LIGHT GASKET | *4 | REAR LIGHT GASKET |
| *5 | REAR LIGHT SOCKET AND WIRE | *6 | REAR LIGHT LENS AND BODY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
