REAR COMBINATION LIGHT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY




   1. Engage the grommet.

   2. Connect the connector to install the rear combination light socket and wire sub-assembly.

   3. for LH Side:




      1. Engage the clamp.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

   Click here

3. INSTALL NO. 1 ROOM PARTITION COVER (for RH Side)

   for Fold Down Seat Type: Click here

4. INSTALL REAR SEAT SUB FLOOR PANEL (for RH Side)

   for Fold Down Seat Type: Click here

5. INSTALL REAR SEAT ASSEMBLY (for RH Side)

   for Fixed Seat Type: Click here

6. INSTALL REAR SEAT ASSEMBLY (for RH Side)

   for Fold Down Seat Type: Click here

7. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (for RH Side)

   for Fixed Seat Type: Click here

   for Fold Down Seat Type: Click here

8. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER (for RH Side)

   Click here

9. INSTALL LUGGAGE COMPARTMENT TRIM BOX (for RH Side)

   Click here

10. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for RH Side)

    Click here

11. INSTALL BATTERY SERVICE HOLE COVER LH (for LH Side)

    Click here

12. INSTALL REAR BUMPER UPPER RETAINER




    1. Engage the guide.

    2. Install the rear bumper upper retainer with the screw.

    3. Engage the clamp.

13. INSTALL REAR BUMPER ASSEMBLY

    Click here

14. INSTALL REAR COMBINATION LIGHT ASSEMBLY




    1. Connect the connector.

    2.

       *a

       Cap

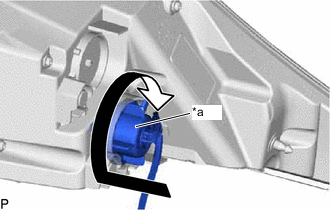

       Turn the cap as shown in the illustration to connect it.

    3.

       *a	Pin
       *b	Guide

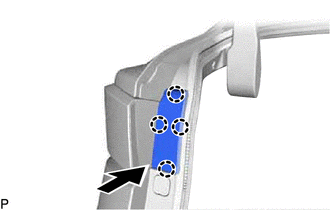

       Engage the 3 guides and pin to temporarily install the rear combination light assembly as shown in the illustration.

    4. Install the rear combination light assembly with the 2 screws.

    5. Remove the protective tape.

15. INSTALL REAR COMBINATION LIGHT COVER




    1.

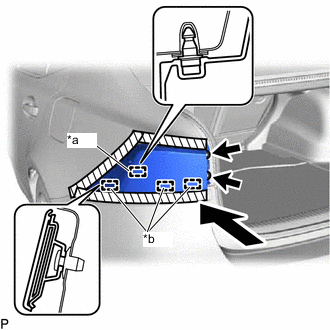

       Engage the 4 claws to install the rear combination light cover as shown in the illustration.
