REAR COMBINATION LIGHT ASSEMBLY INSPECTION

PROCEDURE


  1. INSPECT REAR COMBINATION LIGHT LENS AND BODY LH

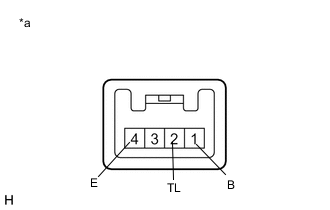

    1. A0022BCC02
      *a

      Component without harness connected

      (Rear Combination Light Lens and Body LH)

      Remove the rear combination light lens and body LH.

    2. Apply auxiliary battery voltage to the rear combination light lens and body LH and check that the lights come on.

      OK
      Condition Specified Condition

      Auxiliary battery positive (+) → Terminal 1 (B)

      Auxiliary battery negative (-) → Terminal 4 (E)

      		 Stop light comes on

      Auxiliary battery positive (+) → Terminal 2 (TL)

      Auxiliary battery negative (-) → Terminal 4 (E)

      		 Taillight comes on

      If the result is not as specified, repair or replace the rear combination light lens and body LH.

  2. INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH


    1. A00230ZC03
      *a

      Component without harness connected

      (Rear Combination Light Socket and Wire Sub-assembly LH)

      Reconnect the rear combination light socket and wire sub-assembly LH to the rear combination light lens and body LH.

    2. Apply auxiliary battery voltage to the rear combination light socket and wire sub-assembly LH and check that the lights come on.

      OK
      Condition Specified Condition

      Auxiliary battery positive (+) → Terminal 2 (STP)

      Auxiliary battery negative (-) → Terminal 6 (E)

      		 Stop light comes on

      Auxiliary battery positive (+) → Terminal 3 (TL)

      Auxiliary battery negative (-) → Terminal 6 (E)

      		 Taillight comes on

      Auxiliary battery positive (+) → Terminal 4 (TRN)

      Auxiliary battery negative (-) → Terminal 6 (E)

      		 Turn signal light comes on

      If the result is not as specified, repair or replace the rear combination light socket and wire sub-assembly LH.

  3. INSPECT REAR COMBINATION LIGHT LENS AND BODY RH


    1. A0022BCC02
      *a

      Component without harness connected

      (Rear Combination Light Lens and Body RH)

      Remove the rear combination light lens and body RH.

    2. Apply auxiliary battery voltage to the rear combination light lens and body RH and check that the lights come on.

      OK
      Condition Specified Condition

      Auxiliary battery positive (+) → Terminal 1 (B)

      Auxiliary battery negative (-) → Terminal 4 (E)

      		 Stop light comes on

      Auxiliary battery positive (+) → Terminal 2 (TL)

      Auxiliary battery negative (-) → Terminal 4 (E)

      		 Taillight comes on

      If the result is not as specified, repair or replace the rear combination light lens and body RH.

  4. INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH


    1. A00230ZC03
      *a

      Component without harness connected

      (Rear Combination Light Socket and Wire Sub-assembly RH)

      Reconnect the rear combination light socket and wire sub-assembly RH to the rear combination light lens and body RH.

    2. Apply auxiliary battery voltage to the rear combination light socket and wire sub-assembly RH and check that the lights come on.

      OK
      Condition Specified Condition

      Auxiliary battery positive (+) → Terminal 2 (STP)

      Auxiliary battery negative (-) → Terminal 6 (E)

      		 Stop light comes on

      Auxiliary battery positive (+) → Terminal 3 (TL)

      Auxiliary battery negative (-) → Terminal 6 (E)

      		 Taillight comes on

      Auxiliary battery positive (+) → Terminal 4 (TRN)

      Auxiliary battery negative (-) → Terminal 6 (E)

      		 Turn signal light comes on

      If the result is not as specified, repair or replace the rear combination light socket and wire sub-assembly RH.
