REAR LIGHT ASSEMBLY DISASSEMBLY

PROCEDURE


  1. REMOVE BACK-UP LIGHT BULB

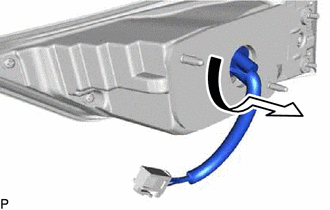

    1. A01D0P5

      Type A:


      1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.

      2. Remove the back-up light bulb from the rear light socket and wire.

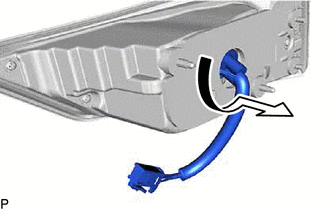

    2. A01D0QL

      Type B:


      1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.

      2. Remove the back-up light bulb from the rear light socket and wire.

  2. REMOVE REAR LIGHT GASKET

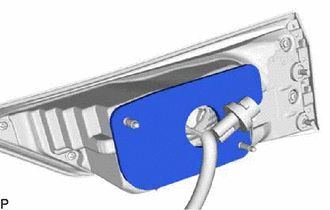

    1. A01CZYT

      Type A:


      1. Remove the rear light gasket.

        Note


        • Be sure to remove all traces of the old rear light gasket from the vehicle body.

        • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.

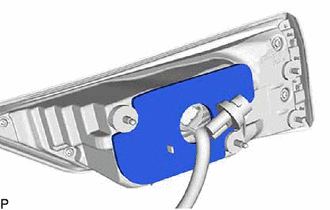

    2. A01D01D

      Type B:


      1. Remove the rear light gasket.

        Note


        • Be sure to remove all traces of the old rear light gasket from the vehicle body.

        • Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.

  3. REMOVE REAR LIGHT SOCKET AND WIRE

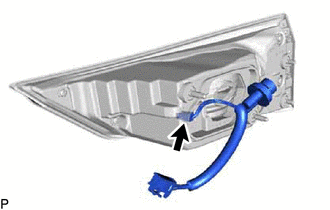

    1. A01CZIU

      Disconnect the connector to remove the rear light socket and wire.

  4. REMOVE REAR LIGHT SOCKET AND WIRE (w/ Rear Fog Light)


    1. for Driver Side:

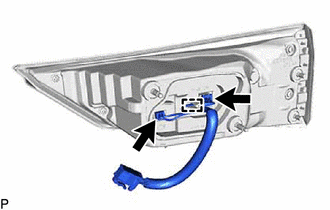

      1. A01CZN0

        Disconnect the 2 connectors.

      2. Disengage the clamp to remove the rear light socket and wire.

  5. REMOVE REAR LIGHT GASKET

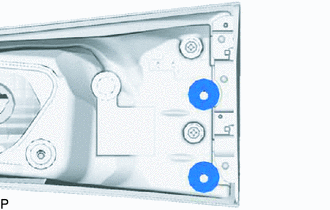

    1. A01D01M

      Type A:


      1. Remove the 2 rear light gaskets.

        Note


        • Be sure to remove all the traces of the old rear light gasket from the vehicle body.

        • Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.

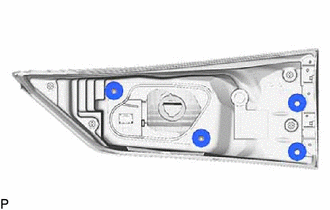

    2. A01CZU5

      Type B:


      1. Remove the 4 rear light gaskets.

        Note


        • Be sure to remove all the traces of the old rear light gasket from the vehicle body.

        • Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.
