AUTOMATIC HIGH BEAM SYSTEM PARTS LOCATION
ILLUSTRATION

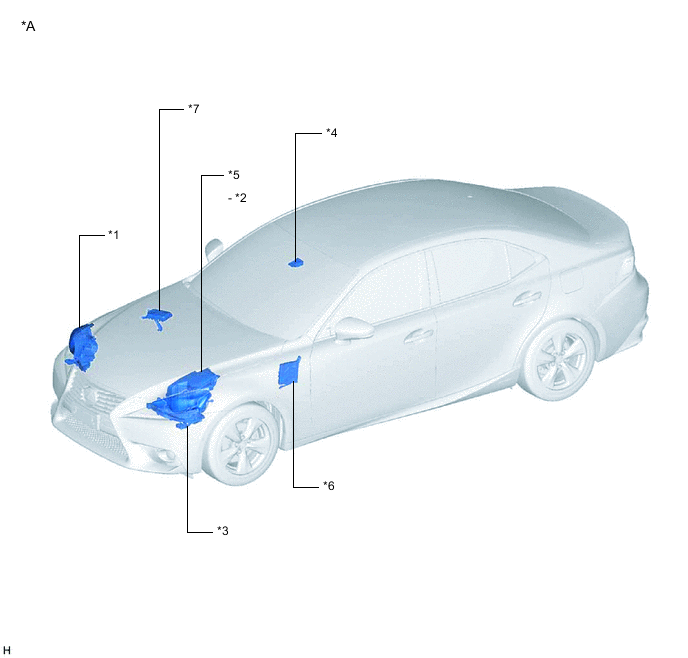

| *A | for LHD | - | - |
| *1 | HEADLIGHT ASSEMBLY RH | *2 | SEMICONDUCTOR PWR INTEGRATION ECU |
| *3 | HEADLIGHT ASSEMBLY LH | *4 | LANE DEPARTURE WARNING CAMERA |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *6 | POWER MANAGEMENT CONTROL ECU |
| *7 | SKID CONTROL ECU | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | HEADLIGHT ASSEMBLY RH | *2 | SEMICONDUCTOR PWR INTEGRATION ECU |
| *3 | HEADLIGHT ASSEMBLY LH | *4 | LANE DEPARTURE WARNING CAMERA |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *6 | POWER MANAGEMENT CONTROL ECU |
| *7 | SKID CONTROL ECU | - | - |
ILLUSTRATION

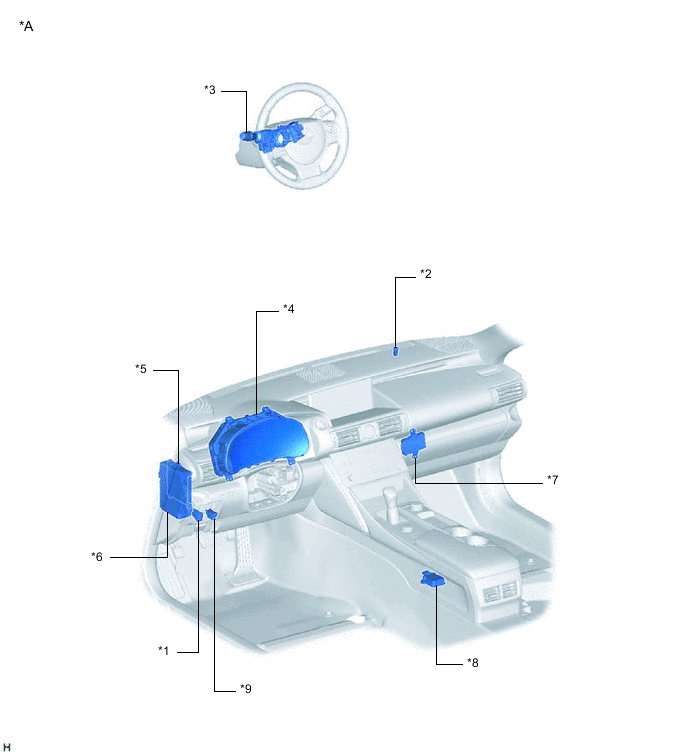

| *A | for LHD | - | - |
| *1 | AUTO HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
| *7 | NETWORK GATEWAY ECU | *8 | YAW RATE SENSOR |
| *9 | DLC3 | - | - |
ILLUSTRATION

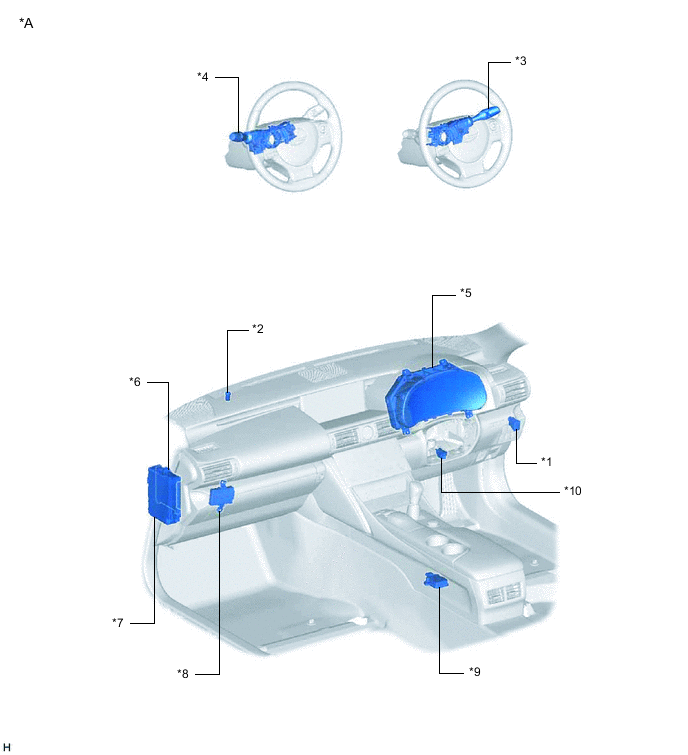

| *A | for RHD | - | - |
| *1 | AUTO HIGH BEAM SWITCH | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY (for Light Control Switch RH Side Type) | *4 | HEADLIGHT DIMMER SWITCH ASSEMBLY (for Light Control Switch LH Side Type) |
| *5 | COMBINATION METER ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
*8 | NETWORK GATEWAY ECU |
| *9 | YAW RATE SENSOR | *10 | DLC3 |
