AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM PARTS LOCATION
ILLUSTRATION

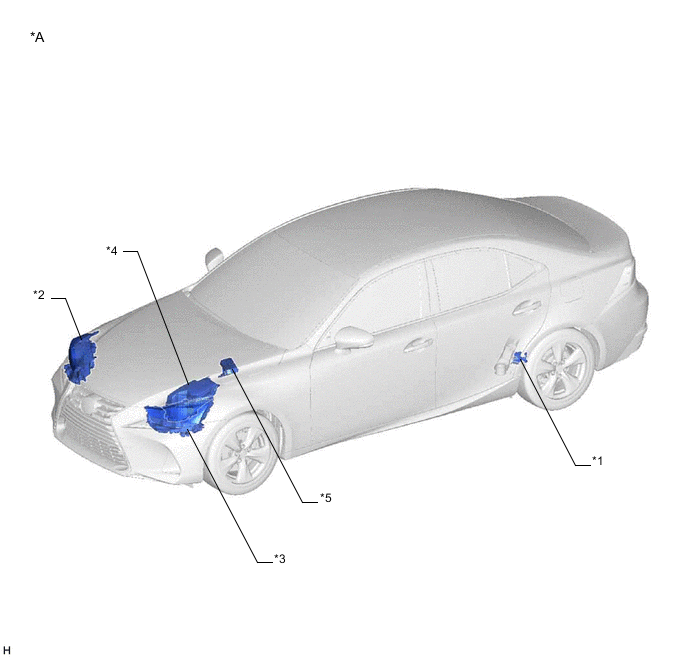

| *A | for LHD | - | - |
| *1 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LED UNIT ASSEMBLY RH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR RH |
| *3 | HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LED UNIT ASSEMBLY LH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR LH |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP RH RELAY - H-LP LH RELAY - H-LP MAIN RH FUSE - H-LP MAIN LH FUSE |
| *5 | SKID CONTROL ECU | - | - |
ILLUSTRATION

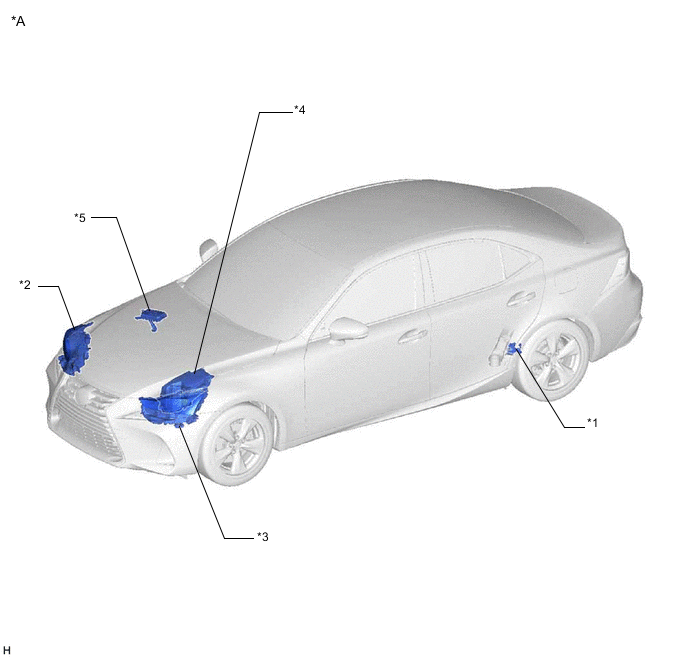

| *A | for RHD | - | - |
| *1 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LED UNIT ASSEMBLY RH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR RH |
| *3 | HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LED UNIT ASSEMBLY LH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR LH |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP RH RELAY - H-LP LH RELAY - H-LP MAIN RH FUSE - H-LP MAIN LH FUSE |
| *5 | SKID CONTROL ECU | - | - |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE |
*4 | DLC3 |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE |
*4 | DLC3 |
