LIGHTING SYSTEM Hazard Warning Switch Circuit

DESCRIPTION

The combination meter assembly receives the hazard warning signal switch on signal and controls the operation of the hazard warning lights.

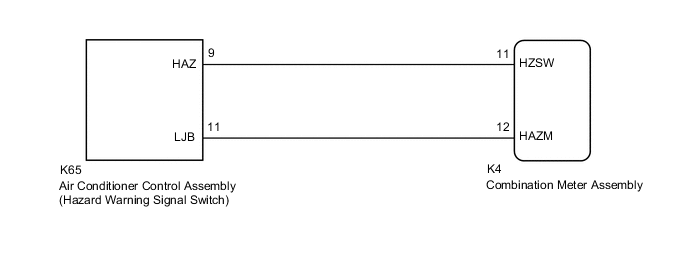

WIRING DIAGRAM

B003XOXE04

PROCEDURE


  1. READ VALUE USING GTS


    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Combination Meter / Data List.

    5. Read the display on the GTS.


      Body Electrical > Combination Meter > Data List
      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Hazard Flasher Switch Hazard warning signal switch signal ON or OFF

      ON: Hazard warning signal switch on

      OFF: Hazard warning signal switch off

      		 -

      Body Electrical > Combination Meter > Data List
      Tester Display
      Hazard Flasher Switch
      OK
      Normal conditions listed above are displayed.
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

  2. INSPECT AIR CONDITIONING CONTROL ASSEMBLY (HAZARD WARNING SIGNAL SWITCH)


    1. Remove the air conditioner control assembly (hazard warning signal switch).

      Click here

    2. Inspect the air conditioner control assembly (hazard warning signal switch).

      Click here

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE AIR CONDITIONING CONTROL ASSEMBLY (HAZARD WARNING SIGNAL SWITCH) Click here

    OK

  3. CHECK HARNESS AND CONNECTOR (AIR CONDITIONER CONTROL ASSEMBLY (HAZARD WARNING SIGNAL SWITCH) - COMBINATION METER ASSEMBLY AND BODY GROUND)


    1. Disconnect the K4 combination meter assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K65-11 (LJB) - K4-12 (HAZM) Always Below 1 Ω
      K65-11 (LJB) - Body ground Always 10 kΩ or higher
      K65-9 (HAZ) - K4-11 (HZSW) Always Below 1 Ω
      K65-9 (HAZ) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE COMBINATION METER ASSEMBLY Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
