LIGHTING SYSTEM PARTS LOCATION

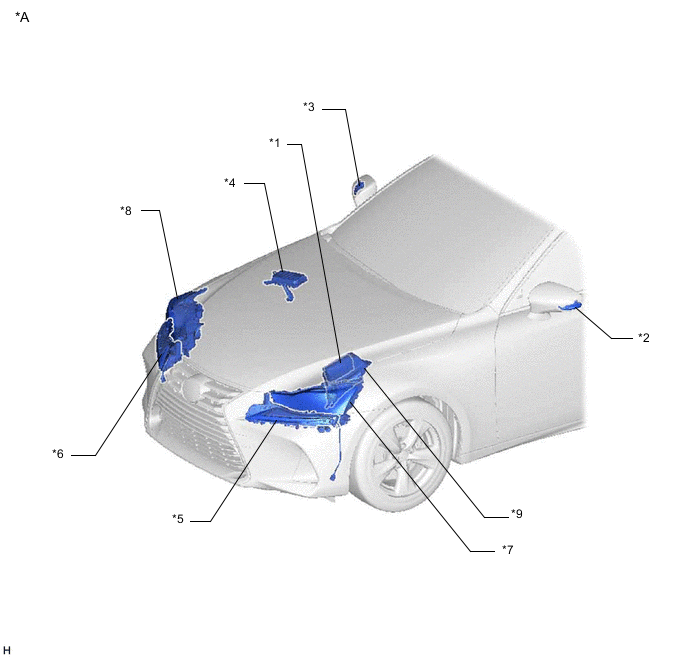

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SEMICONDUCTOR PWR INTEGRATION ECU | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SKID CONTROL ECU |
| *5 | CLEARANCE LIGHT ASSEMBLY LH - CLEARANCE LIGHT LED UNIT ASSEMBLY LH |
*6 | CLEARANCE LIGHT ASSEMBLY RH - CLEARANCE LIGHT LED UNIT ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LED UNIT ASSEMBLY LH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR LH |
*8 | HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LED UNIT ASSEMBLY RH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR RH |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP RH RELAY - H-LP LH RELAY - DC/DC FUSE - P/I-B FUSE - H-LP MAIN RH FUSE - H-LP MAIN LH FUSE - DRL-RH FUSE - DRL-LH FUSE - ECU-IG1 NO. 2 FUSE - STOP FUSE |
- | - |

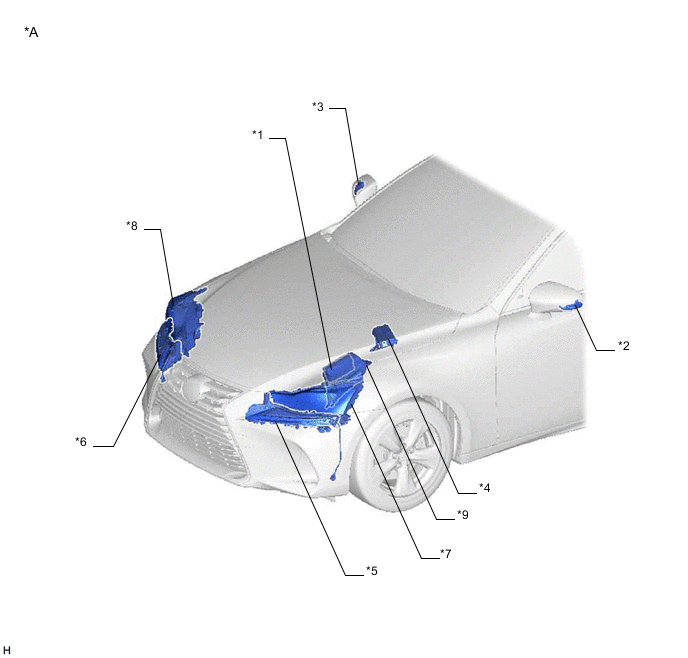

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SEMICONDUCTOR PWR INTEGRATION ECU | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SKID CONTROL ECU |
| *5 | CLEARANCE LIGHT ASSEMBLY LH - CLEARANCE LIGHT LED UNIT ASSEMBLY LH |
*6 | CLEARANCE LIGHT ASSEMBLY RH - CLEARANCE LIGHT LED UNIT ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LED UNIT ASSEMBLY LH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR LH |
*8 | HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LED UNIT ASSEMBLY RH (for LED Type Turn Signal Light) - HEADLIGHT LEVELING MOTOR RH |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP RH RELAY - H-LP LH RELAY - DC/DC FUSE - P/I-B FUSE - H-LP MAIN RH FUSE - H-LP MAIN LH FUSE - DRL-RH FUSE - DRL-LH FUSE - ECU-IG1 NO. 2 FUSE - STOP FUSE |
- | - |

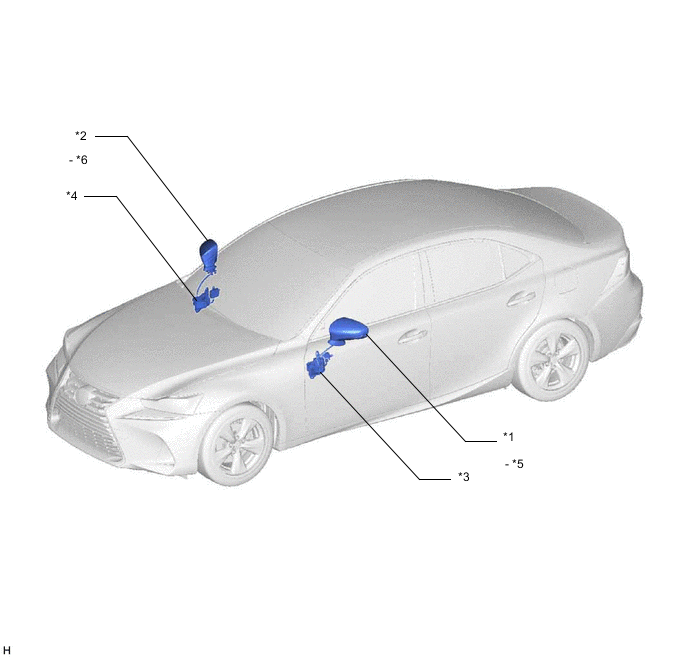

ILLUSTRATION
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (for Power Mirror Control System (w/ Memory)) | *4 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (for Power Mirror Control System (w/o Memory)) |
| *5 | DOOR MIRROR FOOT LIGHT LH | *6 | DOOR MIRROR FOOT LIGHT RH |

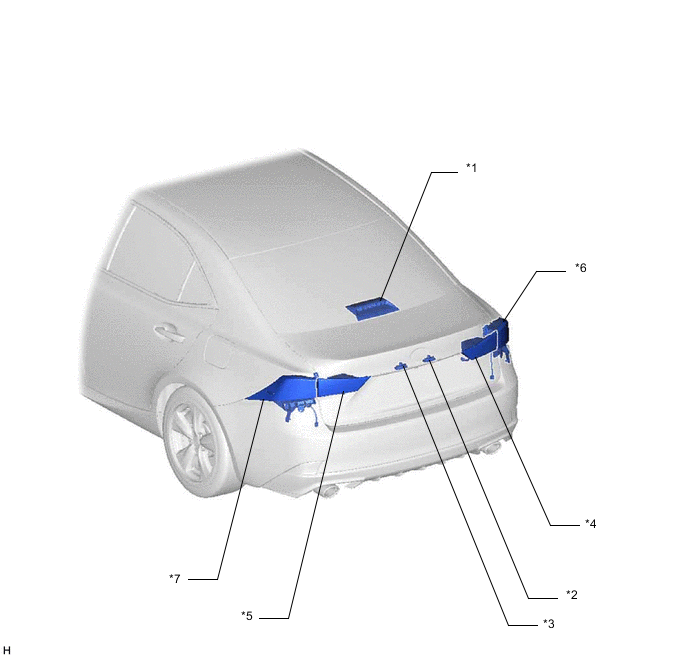

ILLUSTRATION
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *3 | LICENSE PLATE LIGHT ASSEMBLY LH | *4 | REAR LIGHT ASSEMBLY RH - REAR LIGHT SOCKET AND WIRE RH |
| *5 | REAR LIGHT ASSEMBLY LH - REAR LIGHT SOCKET AND WIRE LH |
*6 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH |
- | - |

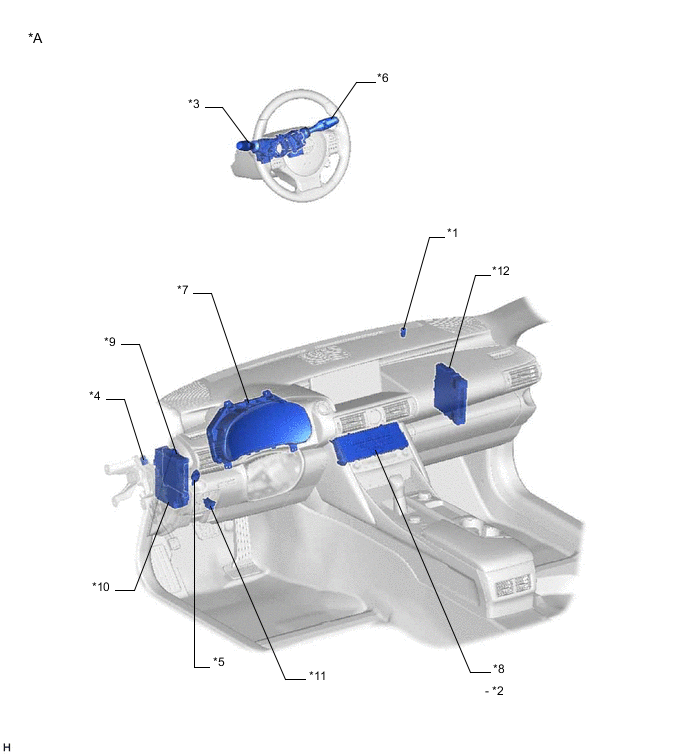

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | AIR CONDITIONING CONTROL ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BKUP LP RELAY - TAIL RELAY - FOG RR RELAY (w/ Rear Fog Light) - FOG RR FUSE (w/ Rear Fog Light) - TAIL FUSE - ECU-B FUSE - BKUP LP FUSE |
| *11 | DLC3 | *12 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |

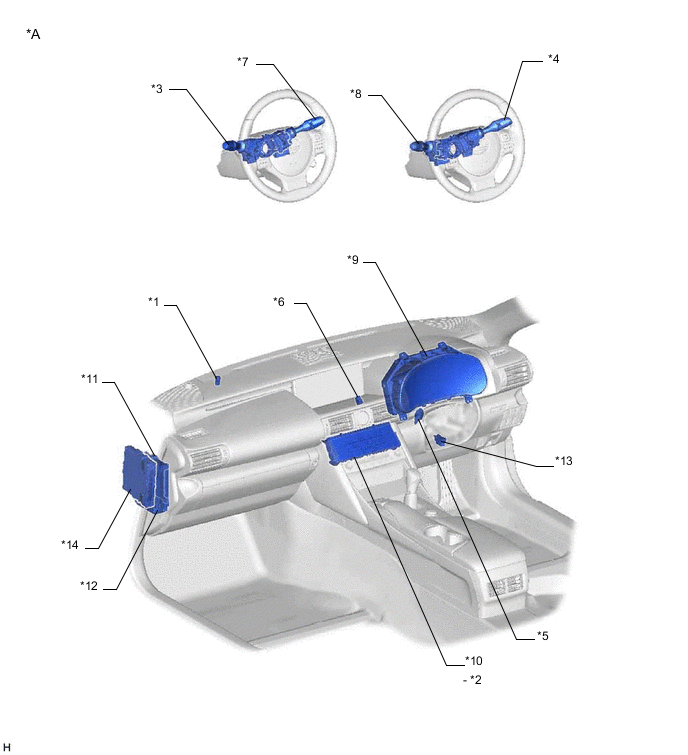

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY (for Light Control Switch LH Side Type) | *4 | HEADLIGHT DIMMER SWITCH ASSEMBLY (for Light Control Switch RH Side Type) |
| *5 | PARKING BRAKE SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | WINDSHIELD WIPER SWITCH ASSEMBLY (for Light Control Switch LH Side Type) | *8 | WINDSHIELD WIPER SWITCH ASSEMBLY (for Light Control Switch RH Side Type) |
| *9 | COMBINATION METER ASSEMBLY | *10 | AIR CONDITIONING CONTROL ASSEMBLY |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BKUP LP RELAY - TAIL RELAY - FOG RR RELAY (w/ Rear Fog Light) - FOG RR FUSE (w/ Rear Fog Light) - TAIL FUSE - ECU-B FUSE - BKUP LP FUSE |
| *13 | DLC3 | *14 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
