CAN COMMUNICATION SYSTEM Millimeter Wave Radar Sensor Communication Stop Mode

DESCRIPTION

Detection Item Symptom Trouble Area
Millimeter Wave Radar Sensor Communication Stop Mode

Either condition is met:


  • Communication stop for "Front Radar" is indicated on the "Communication Bus Check" screen of the GTS.

    Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "Millimeter Wave Radar Sensor Communication Stop Mode" in "DTC Combination Table" are output.

    Click here


  • Millimeter wave radar sensor assembly branch line or connector

  • Power source circuit of millimeter wave radar sensor assembly

  • Millimeter wave radar sensor assembly ground circuit

  • Millimeter wave radar sensor assembly

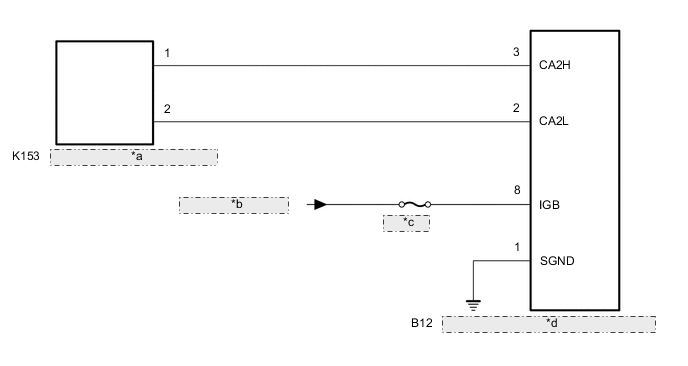

WIRING DIAGRAM

B003Y3DE24
*a No. 13 CAN Junction Connector
*b from IG1 MAIN Relay
*c RADAR-IG
*d Millimeter Wave Radar Sensor Assembly

CAUTION / NOTICE / HINT

Note


  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the power switch on (IG) and turn the lane departure alert main switch on and wait for 7 seconds or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

Tech Tips


  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE


  1. CHECK FOR OPEN IN CAN BUS LINES (MILLIMETER WAVE RADAR SENSOR ASSEMBLY BRANCH LINE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. Disconnect the B12 millimeter wave radar sensor assembly connector.

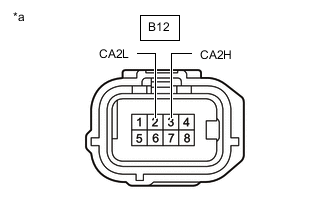

    3. B003YNSC04
      *a

      Front view of wire harness connector

      (to Millimeter Wave Radar Sensor Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      B12-3 (CA2H) - B12-2 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Result
      Result
      OK
      NG

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

    OK

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. B003YNSC05
      *a

      Front view of wire harness connector

      (to Millimeter Wave Radar Sensor Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      B12-1 (SGND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

    2. Reconnect the cable to the negative (-) auxiliary battery terminal.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      B12-8 (IGB) - Body ground Power switch on (IG) 11 to 14 V
      Result
      Result
      OK
      NG

    OK

    REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
