CAN COMMUNICATION SYSTEM Yaw Rate Sensor Communication Stop Mode

Click here
Click here
DTC Code DTC Name
  Yaw Rate Sensor Communication Stop Mode
Click here

DESCRIPTION

Detection Item Symptom Trouble Area
Yaw Rate Sensor Communication Stop Mode

Either condition is met:


  • "Yaw Rate Sensor" is not displayed on the CAN Bus Check screen of the GTS

    Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "Yaw Rate Sensor Communication Stop Mode" in "DTC Combination Table" are output

    Click here

  • Yaw rate sensor branch line or connector

  • Power source circuit of yaw rate sensor

  • Yaw rate sensor ground circuit

  • Yaw rate sensor
B003YSHE07
Click here

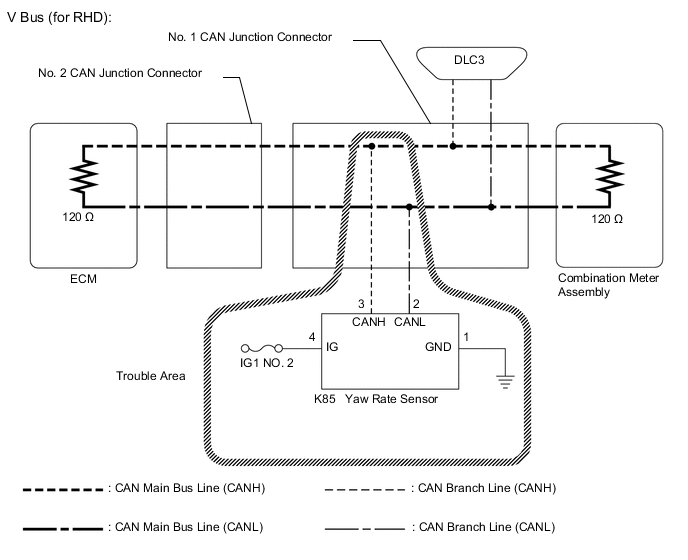

WIRING DIAGRAM

Click here

CAUTION / NOTICE / HINT

Note:

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

  • DTC check procedure: Turn the power switch on (IG) and wait at least 60 seconds, and then drive the vehicle at a speed of 36 km/h (22 mph) or more for 7 seconds or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

Tip:

  • Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

  • Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

Click here

PROCEDURE


  1. Click here

    CHECK FOR OPEN IN CAN BUS LINES (YAW RATE SENSOR BRANCH LINE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. B003YF9C15
      *a

      Front view of wire harness connector

      (to Yaw Rate Sensor)

      Disconnect the K85 yaw rate sensor connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K85-3 (CANH) - K85-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Result
      Result
      OK
      NG

    • OKClick here
    • NG

      REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (YAW RATE SENSOR)

  2. Click here

    CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. B003YF9C16
      *a

      Front view of wire harness connector

      (to Yaw Rate Sensor)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K85-1 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

    2. Reconnect the cable to the negative (-) auxiliary battery terminal.

    3. B003YF9C17
      *a

      Front view of wire harness connector

      (to Yaw Rate Sensor)

      Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      K85-4 (IG) - Body ground Power switch ON (IG) 11 to 14 V
      Result
      Result
      OK
      NG

    • OK

      REPLACE YAW RATE SENSORClick here

    • NG

      REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
