CAN COMMUNICATION SYSTEM Air Conditioning Amplifier Communication Stop Mode

Click here
Click here
DTC Code DTC Name
  Air Conditioning Amplifier Communication Stop Mode
Click here

DESCRIPTION

Detection Item Symptom Trouble Area
Air Conditioning Amplifier Communication Stop Mode

Either condition is met:


  • Communication stop for "Air Conditioning Amplifier" is indicated on the "Communication Bus Check" screen of the GTS.

    Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "Air Conditioning Amplifier Communication Stop Mode" in "DTC Combination Table" are output.

    Click here

  • Air conditioning amplifier assembly branch line or connector

  • Power source circuit of air conditioning amplifier assembly

  • Air conditioning amplifier assembly ground circuit

  • Air conditioning amplifier assembly
Click here

WIRING DIAGRAM

Click here

CAUTION / NOTICE / HINT

Note:

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the power switch on (IG) and wait at least 15 seconds.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

Tip:

  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

Click here

PROCEDURE


  1. Click here

    CHECK FOR OPEN IN CAN BUS LINES (AIR CONDITIONING AMPLIFIER ASSEMBLY BRANCH WIRE)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

    2. Disconnect the K11 air conditioning amplifier assembly connector.

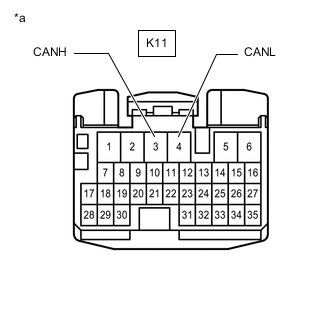

    3. B003XU1C12
      *a

      Front view of wire harness connector

      (to Air Conditioning Amplifier Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K11-3 (CANH) - K11-4 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Result
      Result
      OK
      NG

    • OKClick here
    • NG

      REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY)

  2. Click here

    CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)


    1. Disconnect the K10 air conditioning amplifier assembly connector.

    2. B003XXTC02
      *a

      Front view of wire harness connector

      (to Air Conditioning Amplifier Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K10-1 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

    3. Reconnect the cable to the negative (-) auxiliary battery terminal.

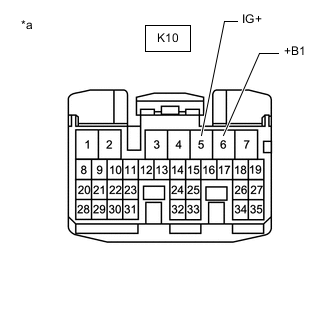

    4. B003XXTC03
      *a

      Front view of wire harness connector

      (to Air Conditioning Amplifier Assembly)

      Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      K10-5 (IG+) - Body ground Power switch on (IG) 11 to 14 V
      K10-6 (+B1) - Body ground Power switch off 11 to 14 V
      Result
      Result
      OK
      NG

    • OK

      REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLYClick here

    • NG

      REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
