DESCRIPTION
| Detection Item | Symptom | Trouble Area |
|---|---|---|
| Hybrid Vehicle Control ECU Communication Stop Mode | Either condition is met:
|
|

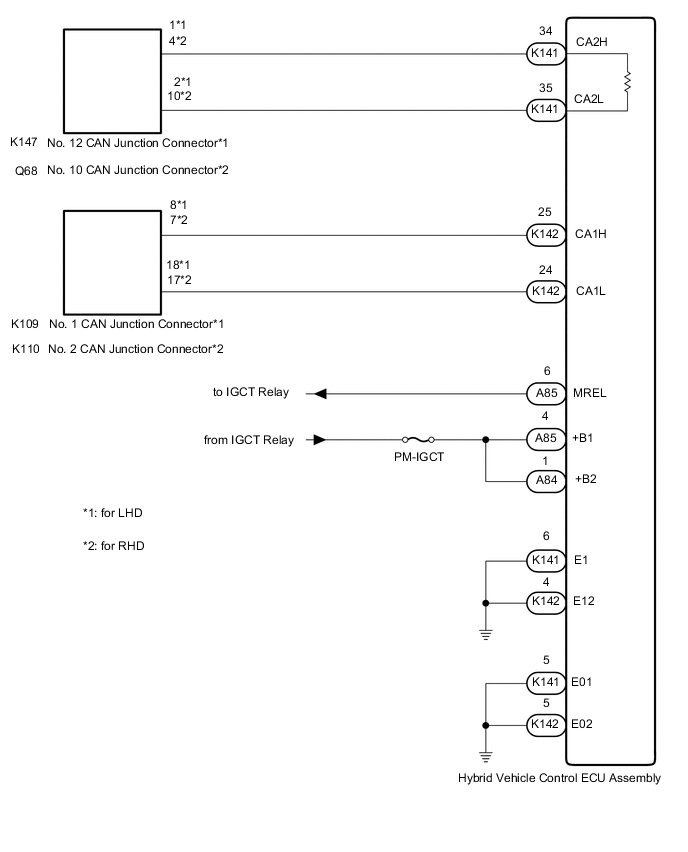

WIRING DIAGRAM
CAUTION / NOTICE / HINT
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
Note
Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.
After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.
DTC check procedure: Turn the power switch on (IG) and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.
Inspect the fuses for circuits related to this system before performing the following procedure.
Tech Tips
Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
PROCEDURE
CHECK FOR OPEN IN CAN BUS LINES (HYBRID VEHICLE CONTROL ECU ASSEMBLY MAIN LINE AND BRANCH LINE)
Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the K141 and K142 hybrid vehicle control ECU assembly connectors.
| *a | Rear view of wire harness connector (to Hybrid Vehicle Control ECU Assembly) |
Measure the resistance according to the value(s) in the table below.
| Standard Resistance | ||||||
|---|---|---|---|---|---|---|
|
||||||
|
| Result | ||||||||
|---|---|---|---|---|---|---|---|---|
|
| B |
|
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY) |
| C |
|
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY) |
| A |
|
CHECK ECU POWER SOURCE CIRCUIT
Check the ECU power source circuit.
| Result | |||
|---|---|---|---|
|
| OK |
|
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY Click here |
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT) |
