LIN COMMUNICATION SYSTEM PARTS LOCATION

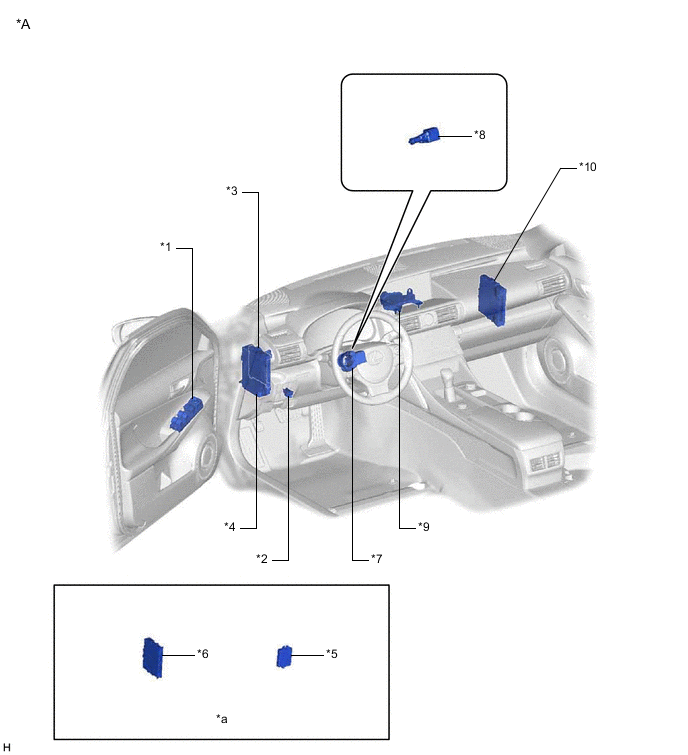

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - P/W FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE - STRG LOCK FUSE - SMART FUSE - S/ROOF FUSE (w/ Sliding Roof System) - DOOR DBL/L FUSE (w/ Double Locking System) |
| *5 | ID CODE BOX (IMMOBILISER CODE ECU) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Manual Tilt and Power Telescopic Steering Column) | *8 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Power Tilt and Power Telescopic Steering Column) |
| *9 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY (w/ Double Locking System) | *10 | POWER MANAGEMENT CONTROL ECU |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |

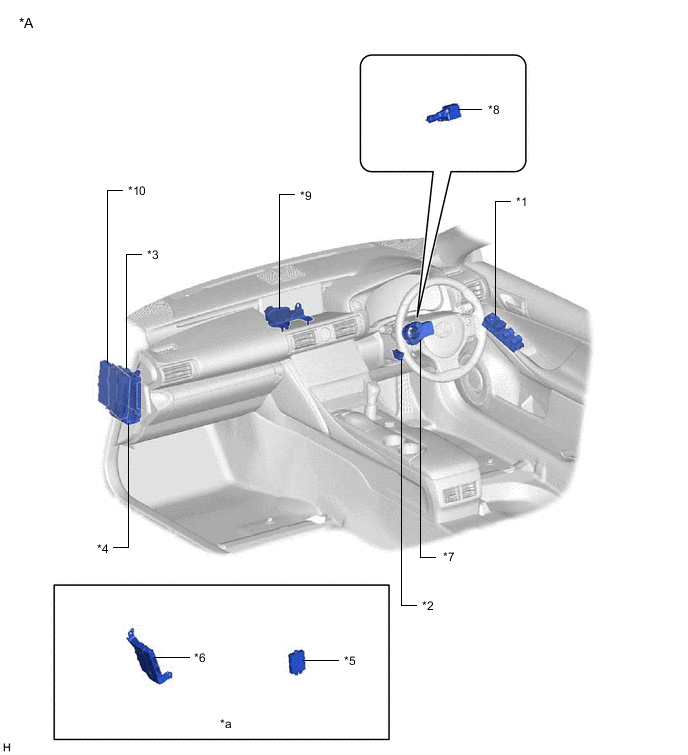

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - P/W FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE - STRG LOCK FUSE - SMART FUSE - S/ROOF FUSE (w/ Sliding Roof System) - DOOR DBL/L FUSE (w/ Double Locking System) |
| *5 | ID CODE BOX (IMMOBILISER CODE ECU) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Manual Tilt and Power Telescopic Steering Column) | *8 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Power Tilt and Power Telescopic Steering Column) |
| *9 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY (w/ Double Locking System) | *10 | POWER MANAGEMENT CONTROL ECU |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |

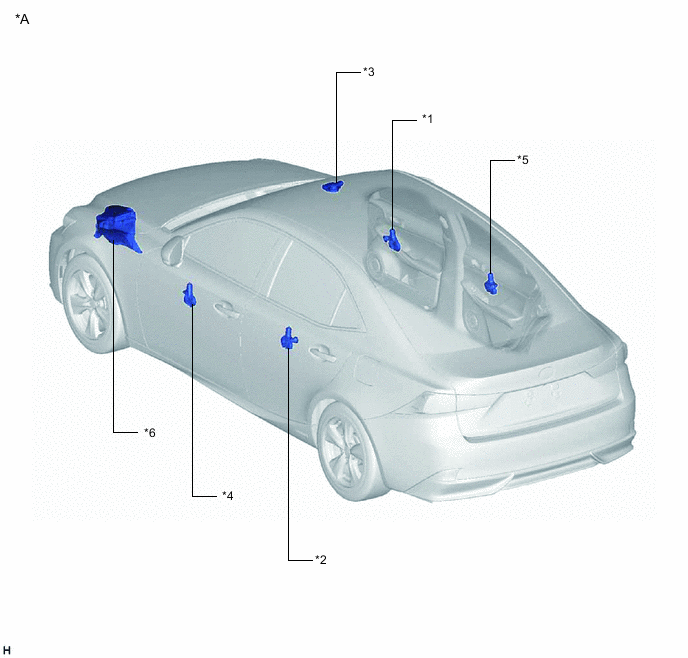

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) |
| *3 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) (w/ Sliding Roof System) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) |
| *5 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE (w/ Double Locking System) |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) |
| *3 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) (w/ Sliding Roof System) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) |
| *5 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE (w/ Double Locking System) |
