INTEGRATION RELAY INSTALLATION

PROCEDURE

1. INSTALL SEMICONDUCTOR PWR INTEGRATION ECU




   1. Connect the 5 connectors.

   2.

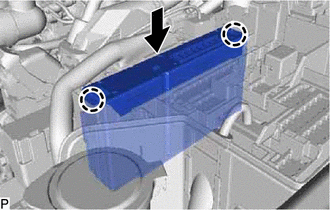

      Engage the 2 claws to install the semiconductor pwr integration ECU as shown in the illustration.

2. INSTALL NO. 1 RELAY BLOCK COVER




   1. Engage the 3 claws.

   2. Engage the 2 clamps to install the No. 1 relay block cover.

3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click here

4. INSTALL BATTERY SERVICE HOLE COVER LH

   Click here
