INTEGRATION RELAY INSPECTION

PROCEDURE

1. Table 1. *a EFI MAIN *b EFI NO. 2 *c EFI-MAIN *d Semiconductor Pwr Integration ECU
   Click here

   INSPECT SEMICONDUCTOR PWR INTEGRATION ECU




   1. IG2 RELAY:



      1.

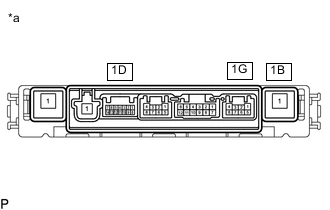

         *a	Component without harness connected (Semiconductor Pwr Integration ECU)

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1B-1 - 1F-4 Auxiliary battery voltage is not applied between terminals 1E-1 and 1D-14 10 kΩ or higher 1B-1 - 1G-3 1B-1 - 1G-4 1B-1 - 1F-4 Auxiliary battery positive (+) → 1E-1 Auxiliary battery negative (-) → 1D-14 Below 1 Ω 1B-1 - 1G-3 1B-1 - 1G-4

         If the resistance is not as specified, replace the semiconductor pwr integration ECU.

   2. EFI-MAIN RELAY:



      1.

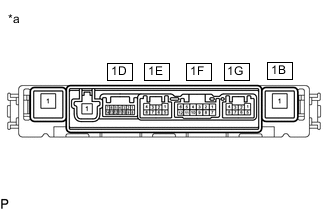

         *a	Component without harness connected (Semiconductor Pwr Integration ECU)

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1B-1 - 1G-1 Auxiliary battery voltage is not applied between terminals 1G-6 and 1D-14 10 kΩ or higher 1B-1 - 1G-2 1B-1 - 1G-7 1B-1 - 1G-8 1B-1 - 1G-1 Auxiliary battery positive (+) → 1G-6 Auxiliary battery negative (-) → 1D-14 Below 1 Ω 1B-1 - 1G-2 1B-1 - 1G-7 1B-1 - 1G-8

         If the resistance is not as specified, replace the semiconductor pwr integration ECU.

   3. H-LP RH-LO RELAY:



      1.

         *a	Component without harness connected (Semiconductor Pwr Integration ECU)

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1B-1 - 1E-2 Auxiliary battery voltage is not applied between terminals 1B-1 and 1D-8 10 kΩ or higher

      2. Measure the voltage according to the value(s) in the table below.

         Standard Voltage
         Tester Connection Condition Specified Condition 1E-2 - Auxiliary battery negative (-) Auxiliary battery positive (+) → 1B-1 Auxiliary battery negative (-) → 1D-8 11 to 14 V

         If the result is not as specified, replace the semiconductor pwr integration ECU.

   4. H-LP LH-LO RELAY:



      1.

         *a	Component without harness connected (Semiconductor Pwr Integration ECU)

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1B-1 - 1E-3 Auxiliary battery voltage is not applied between terminals 1B-1 and 1D-8 10 kΩ or higher

      2. Measure the voltage according to the value(s) in the table below.

         Standard Voltage
         Tester Connection Condition Specified Condition 1E-3 - Auxiliary battery negative (-) Auxiliary battery positive (+) → 1B-1 Auxiliary battery negative (-) → 1D-8 11 to 14 V

         If the result is not as specified, replace the semiconductor pwr integration ECU.

   5. Semiconductor pwr integration ECU ground:



      1.

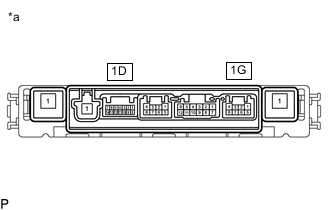

         *a	Component without harness connected (Semiconductor Pwr Integration ECU)

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1D-14 - 1G-5 Always Below 1 Ω

         If the resistance is not as specified, replace the semiconductor pwr integration ECU.
