POWER MANAGEMENT CONTROL ECU INSTALLATION

PROCEDURE


  1. INSTALL POWER MANAGEMENT CONTROL ECU (for LHD)

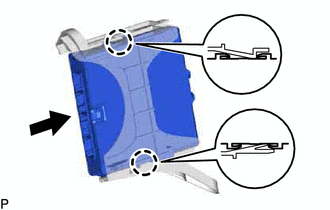

    A01MT6E

    1. Engage the 2 claws to install the power management control ECU as shown in the illustration.

  2. INSTALL ECU INTEGRATION BOX RH WITH POWER MANAGEMENT CONTROL ECU (for LHD)


    1. A002081C01
      B003XUN Bolt
      B003YHT Nut

      Install the ECU integration box RH with power management control ECU with the bolt and nut.

    2. Connect each connector.

  3. INSTALL POWER MANAGEMENT CONTROL ECU (for RHD)


    1. A0021WFC01
      B003XUN Bolt
      B003YHT Nut

      Install the power management control ECU with the bolt and nut.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

    2. Connect each connector.

  4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (for LHD)

    Click here

  5. INSTALL FRONT NO. 2 CONSOLE BOX INSERT (for LHD)

    Click here

  6. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (for LHD)

    Click here

  7. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY (for LHD)

    Click here

  8. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (for RHD)

    Tech Tips

    Use the same procedure for RHD and LHD.

    Click here

  9. INSTALL FRONT NO. 1 CONSOLE BOX INSERT (for RHD)

    Tech Tips

    Use the same procedure for RHD and LHD.

    Click here

  10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (for RHD)

    Tech Tips

    Use the same procedure for RHD and LHD.

    Click here

  11. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY (for RHD)

    Tech Tips

    Use the same procedure for RHD and LHD.

    Click here
