CAN COMMUNICATION SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Lexus Safety System +) |
*2 | POWER STEERING ECU ASSEMBLY |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Front Passenger Side) (w/ Seat Position Memory System) |
*4 | FORWARD RECOGNITION CAMERA (w/ Lexus Safety System +) |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side) (w/ Seat Position Memory System) |
*6 | SKID CONTROL ECU ASSEMBLY |
| *7 | ECM | *8 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | *4 | STEERING SENSOR |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| *7 | ABSORBER CONTROL ECU (w/ AVS System) |
*8 | AIRBAG SENSOR ASSEMBLY |
| *9 | YAW RATE SENSOR | *10 | RADIO RECEIVER ASSEMBLY (w/ Navigation System or Audio and Visual System) |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | TELEMATICS TRANSCEIVER (w/ Telematics Transceiver) |
*2 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | STEREO COMPONENT EQUALIZER ASSEMBLY (w/ ASC System) |
| *5 | FRONT POWER SEAT SWITCH LH (w/ Seat Position Memory System) |
*6 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
| *7 | DLC3 | *8 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) |
| *9 | DRIVING SUPPORT ECU ASSEMBLY (w/ Lexus Safety System +) |
- | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

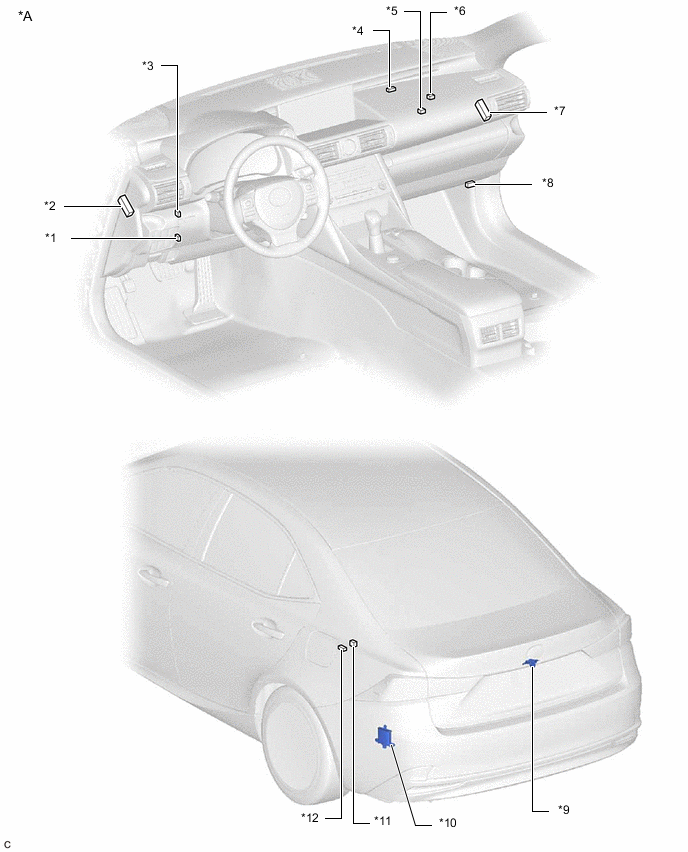

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NO. 21 CAN JUNCTION CONNECTOR | *2 | NO. 2 CAN JUNCTION CONNECTOR |
| *3 | NO. 8 CAN JUNCTION CONNECTOR | *4 | JUNCTION TERMINAL |
| *5 | NO. 13 CAN JUNCTION CONNECTOR | *6 | NO. 12 CAN JUNCTION CONNECTOR |
| *7 | NO. 1 CAN JUNCTION CONNECTOR | *8 | NO. 3 CAN JUNCTION CONNECTOR |
| *9 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System without Parallel Parking Assist Function) |
*10 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
| *11 | NO. 10 CAN JUNCTION CONNECTOR | *12 | NO. 15 JUNCTION CONNECTOR |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Lexus Safety System +) |
*2 | SKID CONTROL ECU ASSEMBLY |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side) (w/ Seat Position Memory System) |
*4 | FORWARD RECOGNITION CAMERA (w/ Lexus Safety System +) |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Front Passenger Side) (w/ Seat Position Memory System) |
*6 | POWER STEERING ECU ASSEMBLY |
| *7 | ECM | *8 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | RADIO RECEIVER ASSEMBLY (w/ Navigation System or Audio and Visual System) |
*6 | COMBINATION METER ASSEMBLY |
| *7 | STEERING SENSOR | *8 | ABSORBER CONTROL ECU (w/ AVS System) |
| *9 | AIRBAG SENSOR ASSEMBLY | *10 | YAW RATE SENSOR |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *2 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | STEREO COMPONENT EQUALIZER ASSEMBLY (w/ ASC System) |
| *5 | DRIVING SUPPORT ECU ASSEMBLY (w/ Lexus Safety System +) |
*6 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
| *7 | DLC3 | *8 | FRONT POWER SEAT SWITCH RH (w/ Seat Position Memory System) |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

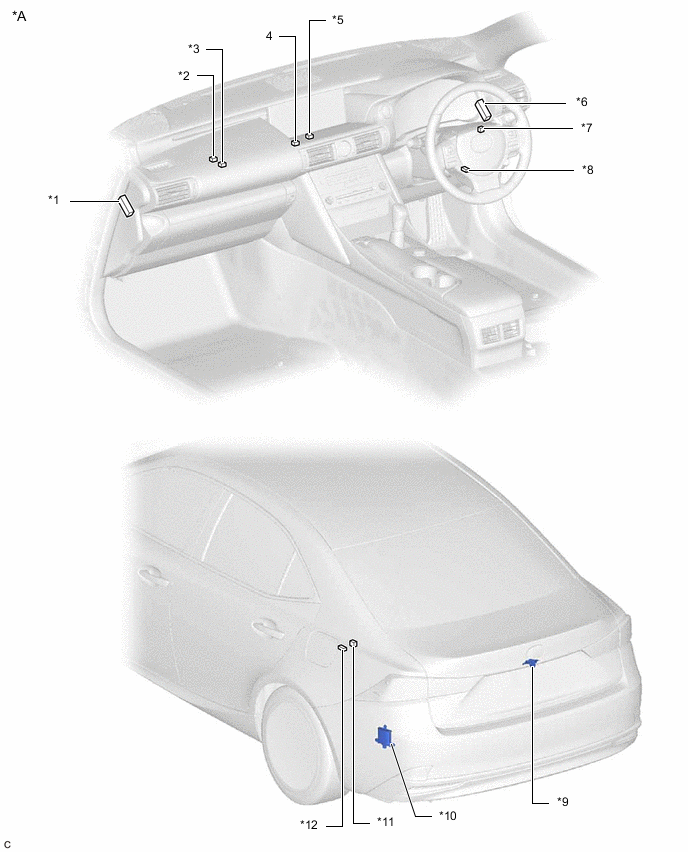

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | NO. 2 CAN JUNCTION CONNECTOR | *2 | NO. 12 CAN JUNCTION CONNECTOR |
| *3 | NO. 13 CAN JUNCTION CONNECTOR | *4 | NO. 21 CAN JUNCTION CONNECTOR |
| *5 | NO. 7 CAN JUNCTION CONNECTOR | *6 | NO. 1 CAN JUNCTION CONNECTOR |
| *7 | JUNCTION TERMINAL | *8 | NO. 4 CAN JUNCTION CONNECTOR |
| *9 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System without Parallel Parking Assist Function) |
*10 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
| *11 | NO. 10 CAN JUNCTION CONNECTOR | *12 | NO. 15 JUNCTION CONNECTOR |
