CAN COMMUNICATION SYSTEM PARTS LOCATION

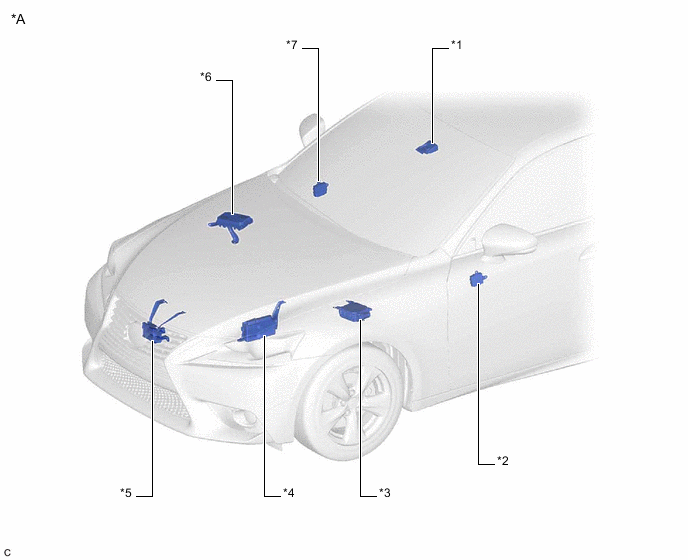

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System) |
*2 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side) (w/ Seat Position Memory System) |
| *3 | SKID CONTROL ECU ASSEMBLY | *4 | ECM |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-crash Safety System) |
*6 | POWER STEERING ECU ASSEMBLY |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Front Passenger Side) (w/ Seat Position Memory System) |
- | - |

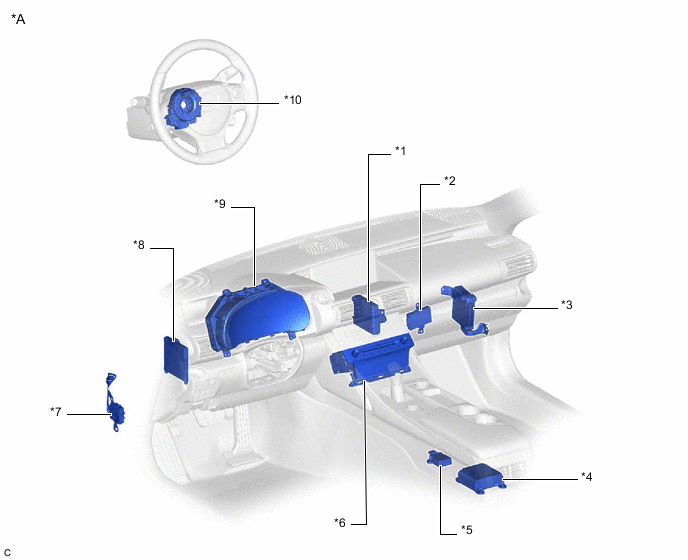

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *2 | NETWORK GATEWAY ECU (w/ Network Gateway ECU) |
| *3 | ABSORBER CONTROL ECU (w/ AVS SYSTEM) |
*4 | AIRBAG SENSOR ASSEMBLY |
| *5 | YAW RATE SENSOR | *6 | RADIO RECEIVER ASSEMBLY (w/ Navigation System) (w/o Navigation System) |
| *7 | HEADLIGHT LEVELING ECU ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | COMBINATION METER ASSEMBLY | *10 | STEERING SENSOR |

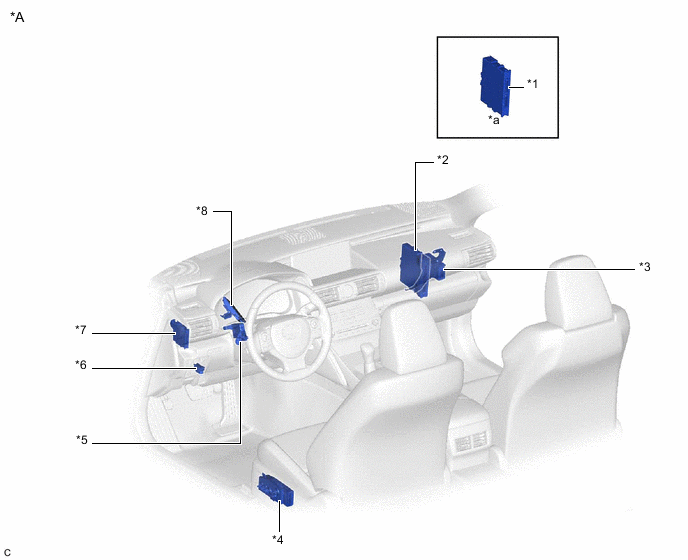

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | POWER MANAGEMENT CONTROL ECU |
| *3 | STEREO COMPONENT EQUALIZER ASSEMBLY (w/ ASC System) |
*4 | FRONT POWER SEAT SWITCH LH (w/ Seat Position Memory System) |
| *5 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
*6 | DLC3 |
| *7 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) |
*8 | DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-crash Safety System) |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

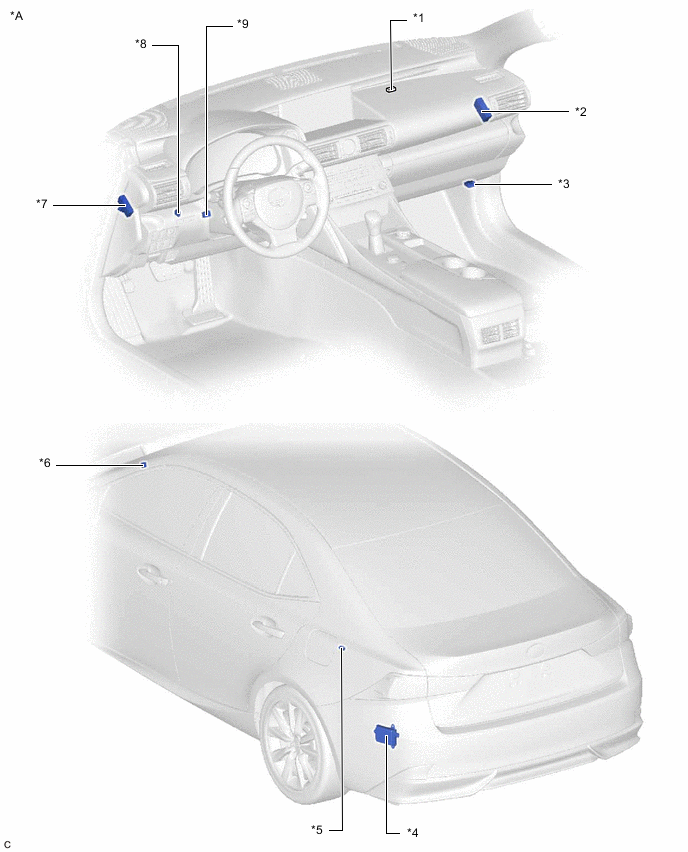

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | JUNCTION TERMINAL | *2 | NO. 1 CAN JUNCTION CONNECTOR |
| *3 | NO. 3 CAN JUNCTION CONNECTOR | *4 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
| *5 | NO. 10 CAN JUNCTION CONNECTOR | *6 | NO. 12 CAN JUNCTION CONNECTOR |
| *7 | NO. 2 CAN JUNCTION CONNECTOR | *8 | NO. 8 CAN JUNCTION CONNECTOR |
| *9 | NO. 5 CAN JUNCTION CONNECTOR | - | - |

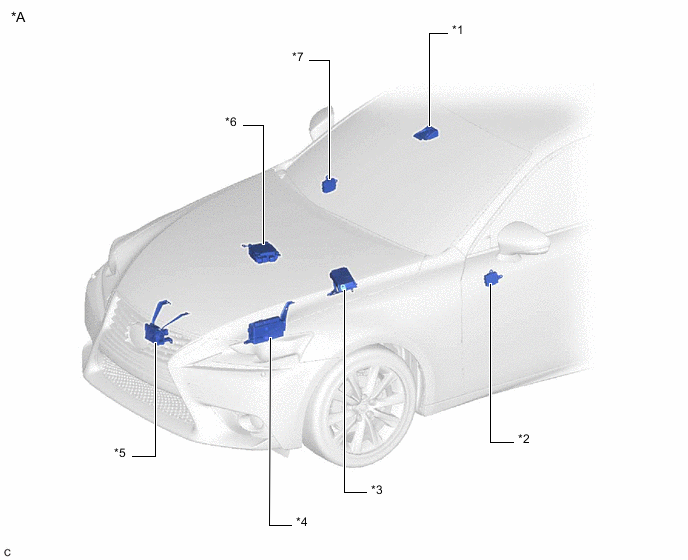

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System) |
*2 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Front Passenger Side) (w/ Seat Position Memory System) |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | ECM |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-crash Safety System) |
*6 | SKID CONTROL ECU ASSEMBLY |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side) (w/ Seat Position Memory System) |
- | - |

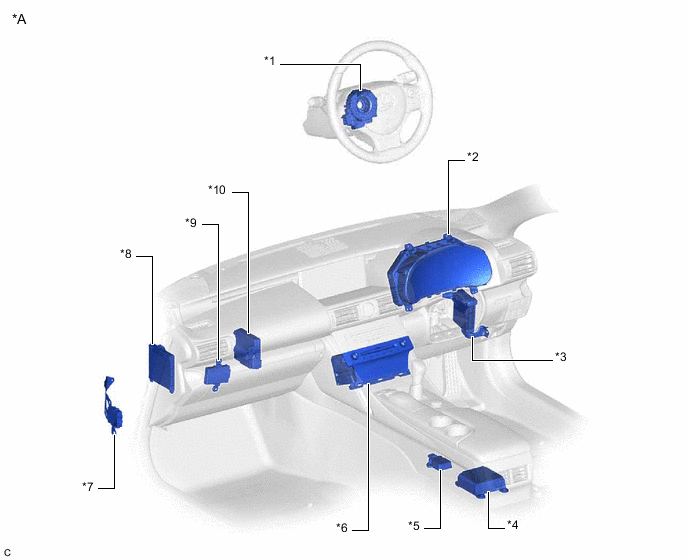

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | STEERING SENSOR | *2 | COMBINATION METER ASSEMBLY |
| *3 | ABSORBER CONTROL ECU (w/ AVS SYSTEM) |
*4 | AIRBAG SENSOR ASSEMBLY |
| *5 | YAW RATE SENSOR | *6 | RADIO RECEIVER ASSEMBLY (w/ Navigation System) (w/o Navigation System) |
| *7 | HEADLIGHT LEVELING ECU ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | NETWORK GATEWAY ECU (w/ Network Gateway ECU) |
*10 | AIR CONDITIONING AMPLIFIER ASSEMBLY |

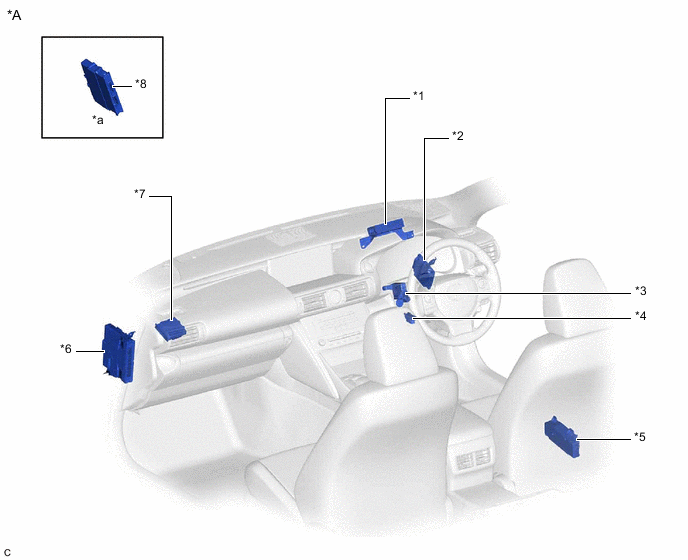

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | STEREO COMPONENT EQUALIZER ASSEMBLY (w/ ASC System) |
*2 | DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-crash Safety System) |
| *3 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
*4 | DLC3 |
| *5 | FRONT POWER SEAT SWITCH RH (w/ Seat Position Memory System) |
*6 | POWER MANAGEMENT CONTROL ECU |
| *7 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) |
*8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

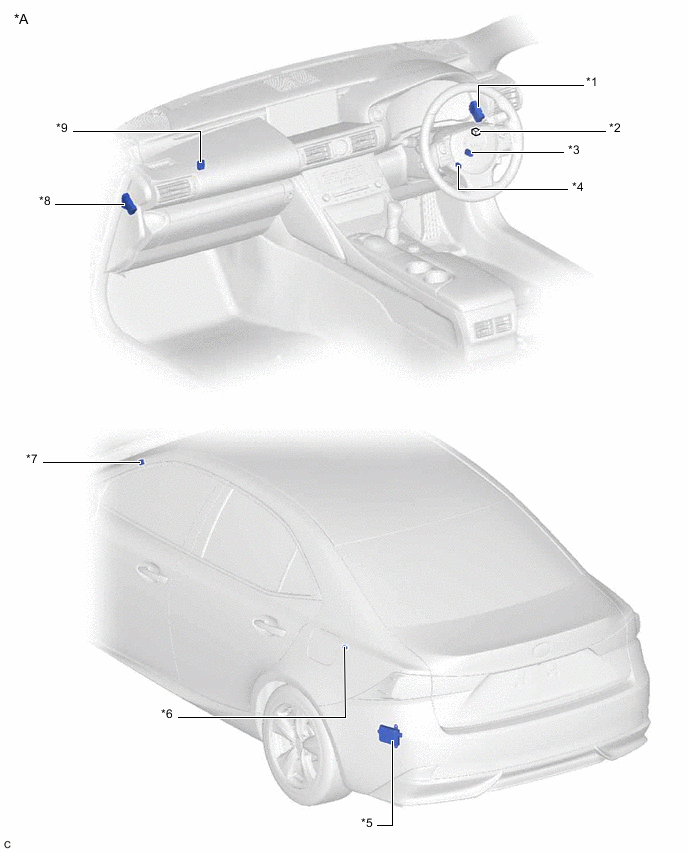

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | NO. 1 CAN JUNCTION CONNECTOR | *2 | JUNCTION TERMINAL |
| *3 | NO. 7 CAN JUNCTION CONNECTOR | *4 | NO. 4 CAN JUNCTION CONNECTOR |
| *5 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
*6 | NO. 10 CAN JUNCTION CONNECTOR |
| *7 | NO. 12 CAN JUNCTION CONNECTOR | *8 | NO. 2 CAN JUNCTION CONNECTOR |
| *9 | NO. 6 CAN JUNCTION CONNECTOR | - | - |
