HEATED STEERING WHEEL SYSTEM(w/o Pre-collision System) PARTS LOCATION
ILLUSTRATION

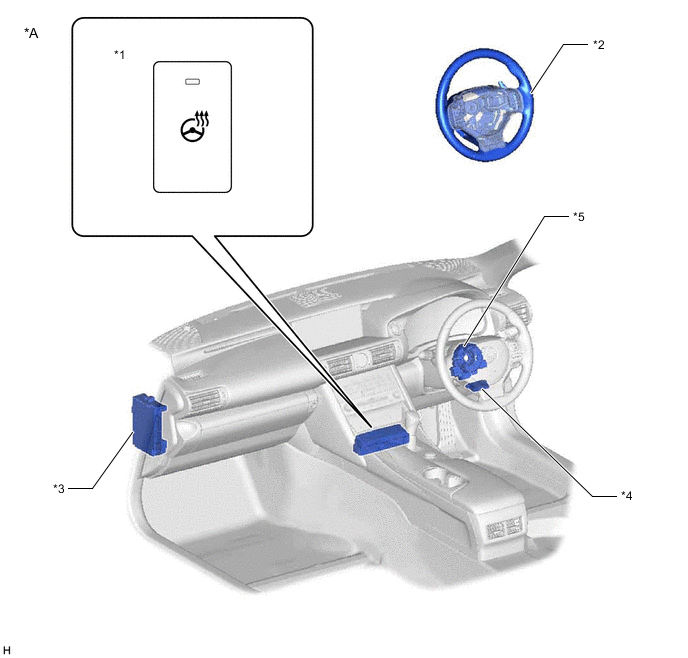

| *A | for LHD | - | - |
| *1 | STEERING HEATER SWITCH (REFRESHING SEAT SWITCH) | *2 | STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
*4 | STEERING WHEEL HEATER CONTROL ASSEMBLY |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | - | - |
ILLUSTRATION

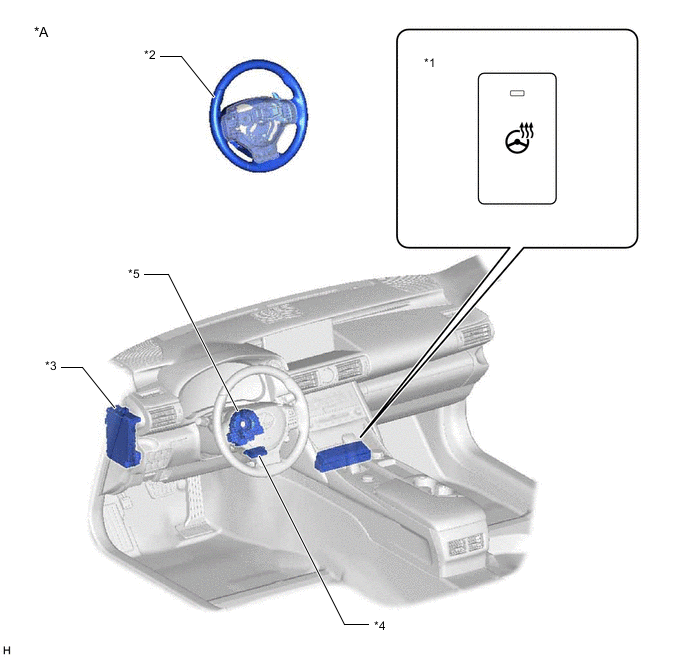

| *A | for RHD | - | - |
| *1 | STEERING HEATER SWITCH (REFRESHING SEAT SWITCH) | *2 | STEERING WHEEL ASSEMBLY - STEERING WHEEL HEATER UNIT |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE |
*4 | STEERING WHEEL HEATER CONTROL ASSEMBLY |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *1 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - STRG HTR RELAY (STEERING HEATER RELAY) - STRG HTR FUSE |
- | - |
