PARKING BRAKE SWITCH(for LHD) REMOVAL

PROCEDURE

1. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

   Click here

2. REMOVE PARKING BRAKE SWITCH ASSEMBLY




   1.

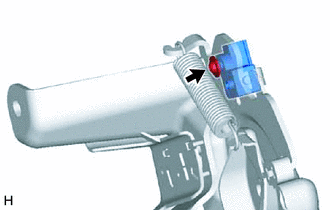

      Remove the screw and parking brake switch assembly from the parking brake control pedal assembly.
