PARKING BRAKE ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

Note


  • When the brake pedal is first depressed after replacing the brake pads or pushing back the disc brake piston, DTC C1341, C1342, C1343 and/or C1344 may be stored. As there is no malfunction, clear the DTCs.

  • While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch is turned on. Therefore, even if only brake pads are to be removed and installed, be sure to remove the ABS motor relays before beginning work.

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE ABS MOTOR RELAY

    for LHD: Click here

    for RHD: Click here

  2. REMOVE REAR WHEEL

  3. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

    Click here

  4. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG

    Click here

  5. REMOVE REAR DISC

    Click here

  6. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING (for Upper Side)


    1. A0022TNN01

      Using SST, remove the parking brake shoe return tension spring.

      SST
      09703-30011

  7. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING (for Lower Side)


    1. A00230FN01

      Using SST, remove the parking brake shoe return tension spring.

      SST
      09703-30011

  8. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET

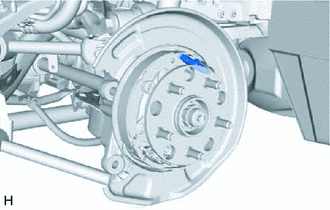

    1. A011NAH

      Slide the parking brake shoe, remove the parking brake shoe adjusting screw set.

  9. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY


    1. A0020G8N01

      Using SST, remove the parking brake shoe hold down spring cup, parking brake shoe hold down compression spring and parking brake shoe hold down spring pin.

      SST
      09718-00011

    2. Remove the No. 2 parking brake shoe assembly.

  10. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY


    1. A00238NN01

      Using SST, remove the parking brake shoe hold down spring cup, parking brake shoe hold down compression spring and parking brake shoe hold down spring pin.

      SST
      09718-00011

    2. Remove the No. 1 parking brake shoe assembly.

  11. REMOVE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY

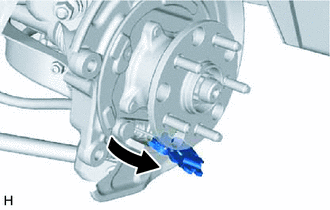

    1. A011MZR

      Slide the parking brake shoe lever sub-assembly.

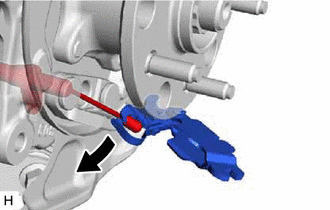

    2. A011MM0

      Separate the No. 3 parking brake cable assembly to remove the parking brake shoe lever sub-assembly.

  12. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY


    1. A011ND3

      Remove the nut and separate the No. 3 parking brake cable assembly.

  13. REMOVE PARKING BRAKE ANCHOR BLOCK SUB-ASSEMBLY


    1. Remove the rear axle hub and bearing assembly.

      Click here

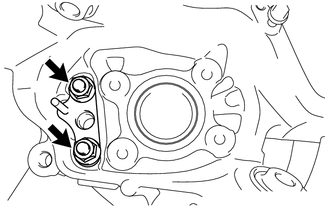

    2. A011MP9

      Remove the 2 nuts, cable support bracket and parking brake anchor block sub-assembly.
