PARKING BRAKE CABLE INSTALLATION

PROCEDURE


  1. INSTALL NO. 2 PARKING BRAKE CABLE SUPPORT BRACKET


    1. Install the No. 2 parking brake cable support bracket to the No. 3 parking brake cable assembly.

  2. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY


    1. Install the No. 3 parking brake cable assembly with the nut.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

    2. Engage the 2 claws.

    3. Install the No. 3 parking brake cable assembly with the 2 bolts.

      Torque:
      19 N*m  { 194 kgf*cm, 14 ft.*lbf }

  3. INSTALL NO. 1 PARKING BRAKE CABLE SUPPORT BRACKET

    Tech Tips

    Use the same procedure as for the No. 2 parking brake cable support bracket.

  4. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

    Tech Tips

    Use the same procedure as for the No. 3 parking brake cable assembly.

  5. INSTALL PARKING BRAKE SHOE LEVER SUB-ASSEMBLY

    Click here

  6. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (for LHD)


    1. Pass the No. 1 parking brake cable assembly through the parking brake control pedal assembly.

    2. Install the clip to the No. 1 parking brake cable assembly.

    3. Temporarily install the No. 1 wire adjusting nut and lock nut.

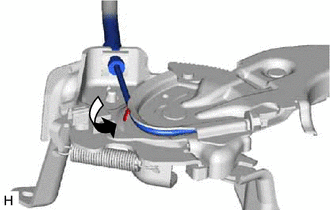

    4. A011O8Q

      Bend the parking brake control pedal assembly claw.

  7. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY (for RHD)


    1. Pass the No. 1 parking brake cable assembly through the parking brake control pedal assembly.

    2. Install the clip to the No. 1 parking brake cable assembly.

    3. Temporarily install the No. 1 wire adjusting nut and lock nut.

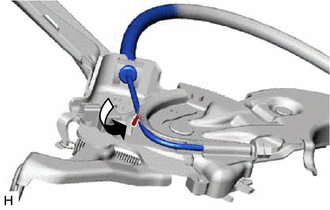

    4. A011NOQ

      Bend the parking brake control pedal assembly claw.

  8. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY (for LHD)

    Click here

  9. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY (for RHD)

    Click here
