PARKING BRAKE CABLE COMPONENTS

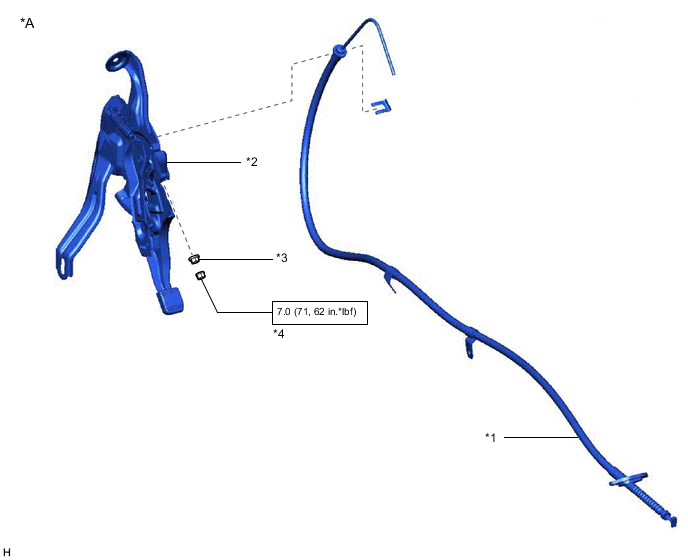

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NO. 1 PARKING BRAKE CABLE ASSEMBLY | *2 | PARKING BRAKE CONTROL PEDAL ASSEMBLY |
| *3 | NO. 1 WIRE ADJUSTING NUT | *4 | LOCK NUT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

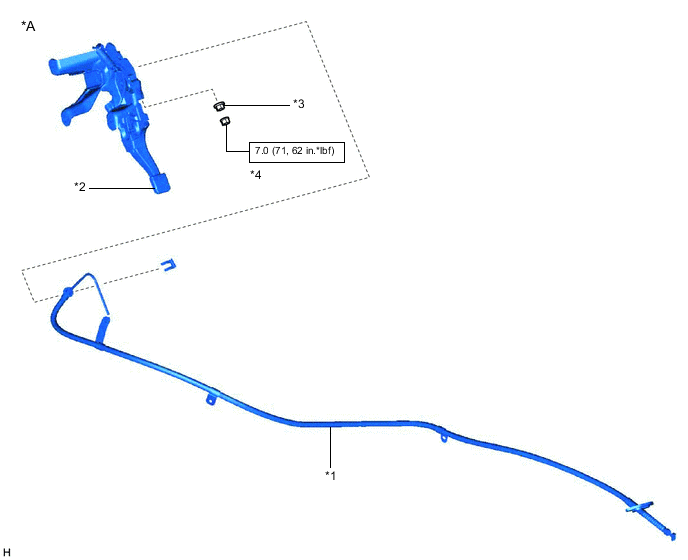

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | NO. 1 PARKING BRAKE CABLE ASSEMBLY | *2 | PARKING BRAKE CONTROL PEDAL ASSEMBLY |
| *3 | NO. 1 WIRE ADJUSTING NUT | *4 | LOCK NUT |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

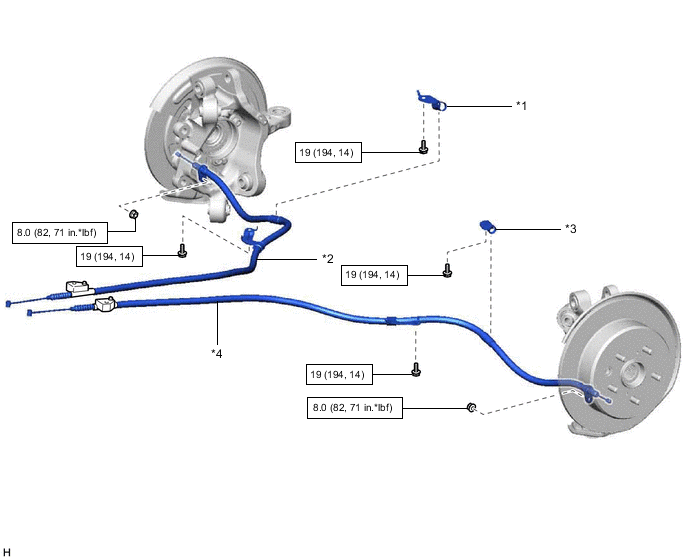

ILLUSTRATION
| *1 | NO. 1 PARKING BRAKE CABLE SUPPORT BRACKET | *2 | NO. 2 PARKING BRAKE CABLE ASSEMBLY |
| *3 | NO. 2 PARKING BRAKE CABLE SUPPORT BRACKET | *4 | NO. 3 PARKING BRAKE CABLE ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
