PARKING BRAKE PEDAL(for RHD) REMOVAL

PROCEDURE


  1. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Click here

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Tech Tips

    Use the same procedure as for LHD.

    for Manual Seat: Click here

    for Power Seat: Click here

  3. REMOVE YAWRATE SENSOR BRACKET

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  5. REMOVE AIR DUCT SUB-ASSEMBLY

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  6. REMOVE ACCELERATOR PEDAL PAD

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  7. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  8. REMOVE FLOOR CARPET HOOK

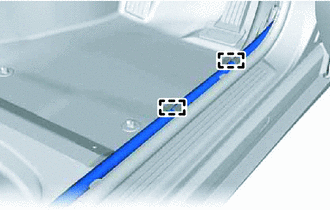

    1. A0020TR

      Disengage the 2 clamps and disconnect the wire harness.

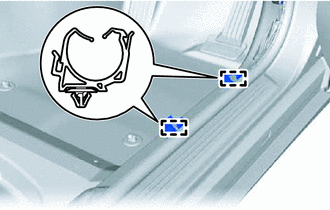

    2. A0021IX

      Disengage the 2 clamps to remove the 2 floor carpet hooks.

  9. REMOVE REAR NO. 4 AIR DUCT

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  10. REMOVE FRONT FLOOR SILENCER PAD RH

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  11. REMOVE REAR NO. 3 AIR DUCT

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  12. REMOVE NO. 2 DASH PANEL INSULATOR PAD

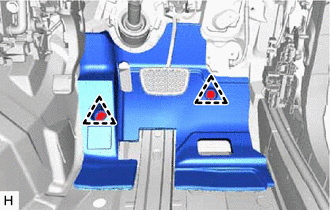

    1. A0020YZ

      Disengage the 2 clips to remove the No. 2 dash panel insulator pad.

  13. REMOVE AIRBAG SENSOR ASSEMBLY

    Tech Tips

    Use the same procedure as for LHD.

    Click here

  14. REMOVE FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY


    1. A00224K

      Disengage the 6 clamps from the front upper floor rear sub panel sub-assembly.

    2. A0020PI

      Disengage the 2 guides from the front floor mat.

    3. Remove the 4 bolts.

    4. A002099

      Disengage the clamp, and remove the front upper floor rear sub panel sub-assembly.

  15. LOOSEN NO. 1 WIRE ADJUSTING NUT


    1. Completely release the parking brake pedal.

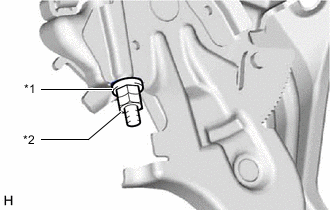

    2. A0022O8C01
      *1 No. 1 Wire Adjusting Nut
      *2 Lock Nut

      Loosen the lock nut and the No. 1 wire adjusting nut to completely release the parking brake cable.

  16. REMOVE PARKING BRAKE RETURN WITH DAMPER SPRING


    1. A00221K

      Using needle-nose pliers, remove the parking brake return with damper spring.

  17. REMOVE PARKING BRAKE EQUALIZER


    1. A0022H1C01
      *1 No. 2 Parking Brake Cable Assembly
      *2 No. 3 Parking Brake Cable Assembly

      Remove the 2 nuts and separate the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly from the parking brake equalizer.

    2. A002266

      Slide the rubber boot as shown in the illustration.

    3. A0021DZN01

      Remove the parking brake equalizer as shown in the illustration.

  18. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY


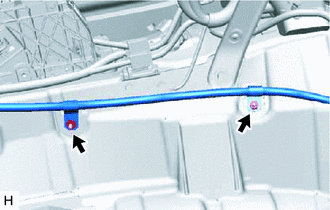

    1. A0022V8

      Remove the 2 nuts, and separate the No. 1 parking brake cable assembly from the body.

    2. A0022W9

      Remove the 2 bolts, and separate the No. 1 parking brake cable assembly from the body.

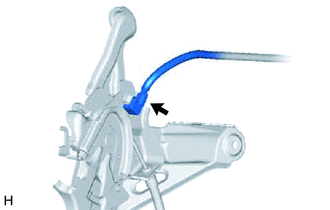

    3. A0022RU

      Disconnect the parking brake switch connector.

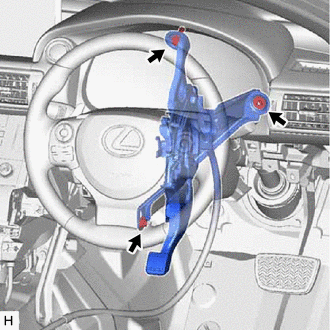

    4. A0022RS

      Remove the bolt, 2 nuts and parking brake control pedal assembly from the body.
