PARKING BRAKE PEDAL(for RHD) COMPONENTS
ILLUSTRATION
| *1 | ACCELERATOR PEDAL ASSEMBLY | *2 | ACCELERATOR PEDAL PAD |
| *3 | AIR DUCT SUB-ASSEMBLY | *4 | FLOOR CARPET HOOK |
| *5 | FRONT FLOOR SILENCER PAD RH | *6 | NO. 2 DASH PANEL INSULATOR PAD |
| *7 | REAR NO. 3 AIR DUCT | *8 | REAR NO. 4 AIR DUCT |
| *9 | FRONT FLOOR MAT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

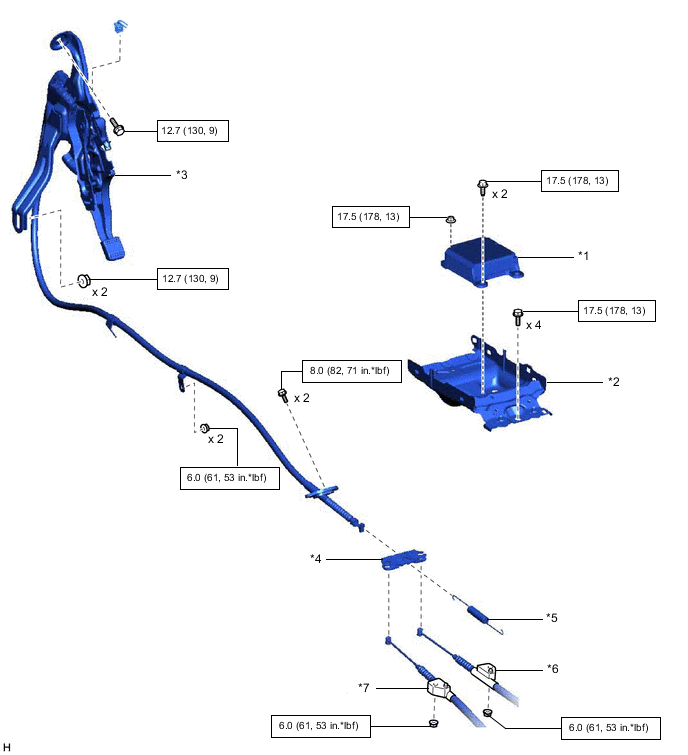

ILLUSTRATION
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY |
| *3 | PARKING BRAKE CONTROL PEDAL ASSEMBLY | *4 | PARKING BRAKE EQUALIZER |
| *5 | PARKING BRAKE RETURN WITH DAMPER SPRING | *6 | NO. 2 PARKING BRAKE CABLE ASSEMBLY |
| *7 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

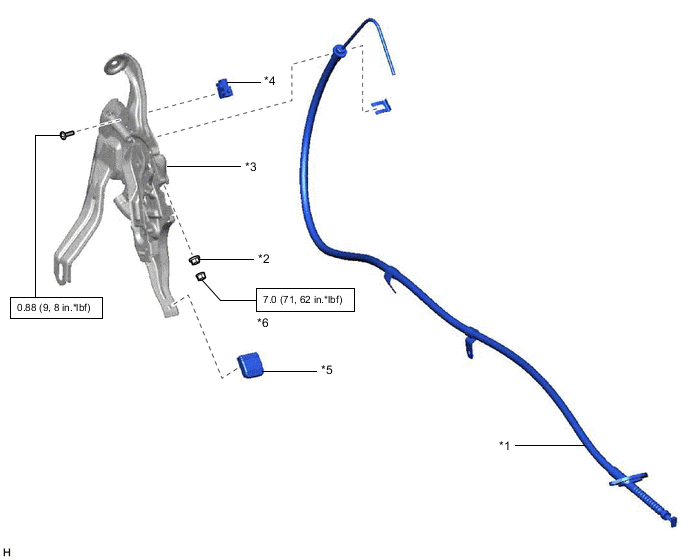

ILLUSTRATION
| *1 | NO. 1 PARKING BRAKE CABLE ASSEMBLY | *2 | NO. 1 WIRE ADJUSTING NUT |
| *3 | PARKING BRAKE CONTROL PEDAL ASSEMBLY | *4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | PARKING PEDAL PAD | *6 | LOCK NUT |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
