PARKING BRAKE PEDAL(for LHD) REMOVAL

PROCEDURE


  1. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Click here

  2. REMOVE FRONT SEAT ASSEMBLY LH

    for Manual Seat: Click here

    for Power Seat: Click here

  3. REMOVE YAWRATE SENSOR BRACKET

    Click here

  4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Click here

  5. REMOVE ACCELERATOR PEDAL PAD

    Click here

  6. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Click here

  7. REMOVE FLOOR CARPET HOOK

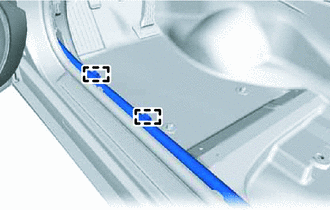

    1. A0021QX

      Disengage the 2 clamps and disconnect the wire harness.

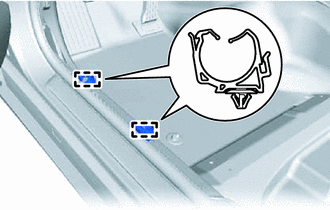

    2. A00212R

      Disengage the 2 clamps to remove the 2 floor carpet hooks.

  8. REMOVE REAR NO. 2 AIR DUCT

    Click here

  9. REMOVE FRONT FLOOR SILENCER PAD LH

    Click here

  10. REMOVE REAR NO. 1 AIR DUCT

    Click here

  11. REMOVE NO. 3 DASH PANEL INSULATOR PAD

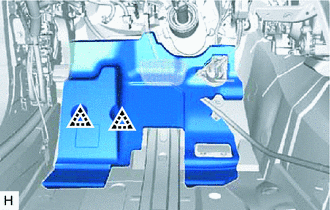

    1. A0020ZL

      Disengage the 2 clips to remove the No. 3 dash panel insulator pad.

  12. REMOVE AIRBAG SENSOR ASSEMBLY

    Click here

  13. REMOVE FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY


    1. A00224K

      Disengage the 6 clamps from the front upper floor rear sub panel sub-assembly.

    2. A0020PI

      Disengage the 2 guides from the front floor mat.

    3. Remove the 4 bolts.

    4. A002099

      Disengage the clamp, and remove the front upper floor rear sub panel sub-assembly.

  14. LOOSEN NO. 1 WIRE ADJUSTING NUT


    1. Completely release the parking brake pedal.

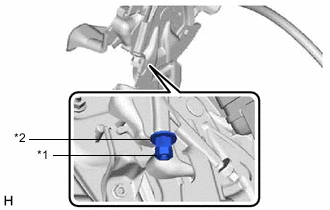

    2. A00224BC01
      *1 Lock Nut
      *2 No. 1 Wire Adjusting Nut

      Loosen the lock nut and the No. 1 wire adjusting nut to completely release the parking brake cable.

  15. REMOVE PARKING BRAKE RETURN WITH DAMPER SPRING

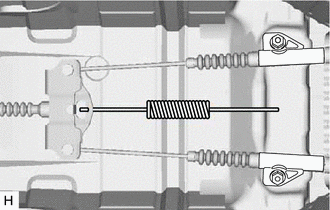

    1. A00221K

      Using needle-nose pliers, remove the parking brake return with damper spring.

  16. REMOVE PARKING BRAKE EQUALIZER


    1. A0022H1C01
      *1 No. 2 Parking Brake Cable Assembly
      *2 No. 3 Parking Brake Cable Assembly

      Remove the 2 nuts and separate the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly from the parking brake equalizer.

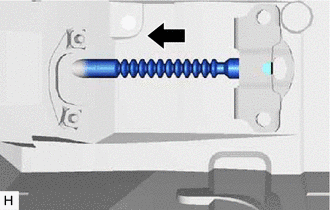

    2. A002266

      Slide the rubber boot as shown in the illustration.

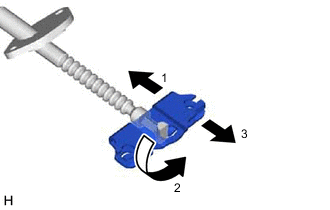

    3. A0021DZN01

      Remove the parking brake equalizer as shown in the illustration.

  17. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Click here

  18. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

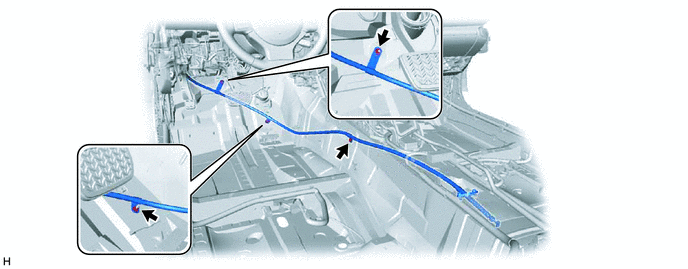

    1. Remove the 3 nuts, and separate the No. 1 parking brake cable assembly from the body.

      A0020QW

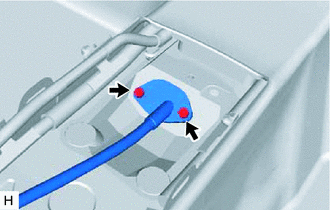

    2. A0022W9

      Remove the 2 bolts, and separate the No. 1 parking brake cable assembly from the body.

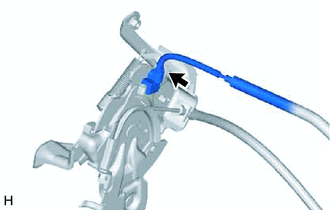

    3. A0022PT

      Disconnect the parking brake switch connector.

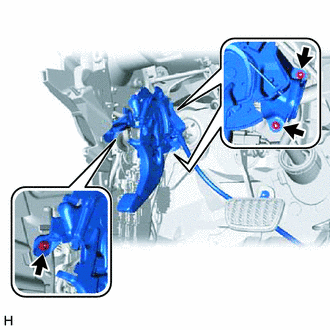

    4. A00221H

      Remove the 3 nuts and parking brake control pedal assembly from the body.
