PARKING BRAKE PEDAL(for LHD) COMPONENTS

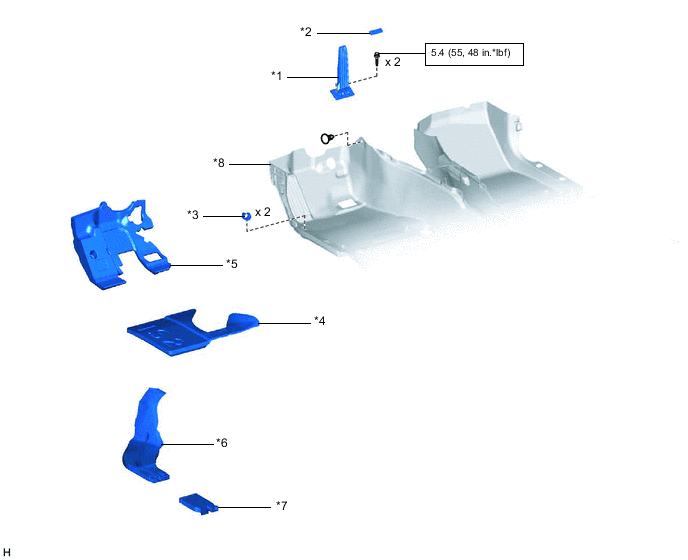

ILLUSTRATION
| *1 | ACCELERATOR PEDAL ASSEMBLY | *2 | ACCELERATOR PEDAL PAD |
| *3 | FLOOR CARPET HOOK | *4 | FRONT FLOOR SILENCER PAD LH |
| *5 | NO. 3 DASH PANEL INSULATOR PAD | *6 | REAR NO. 1 AIR DUCT |
| *7 | REAR NO. 2 AIR DUCT | *8 | FRONT FLOOR MAT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

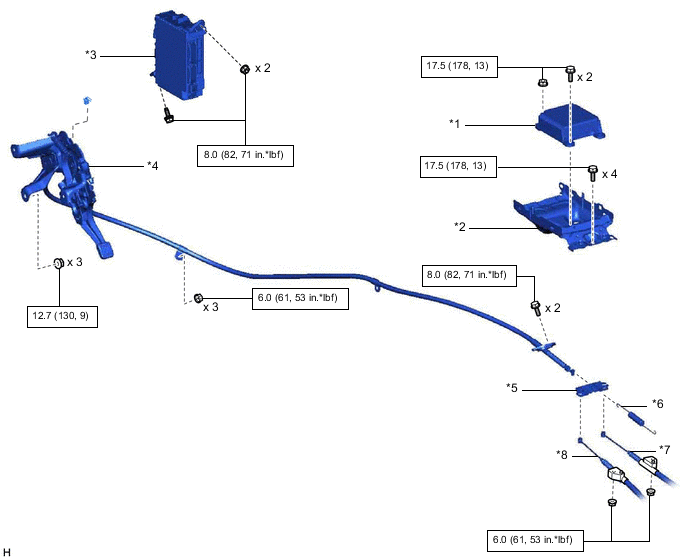

ILLUSTRATION
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | FRONT FLOOR REAR UPPER SUB PANEL SUB-ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU | *4 | PARKING BRAKE CONTROL PEDAL ASSEMBLY |
| *5 | PARKING BRAKE EQUALIZER | *6 | PARKING BRAKE RETURN WITH DAMPER SPRING |
| *7 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *8 | NO. 3 PARKING BRAKE CABLE ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

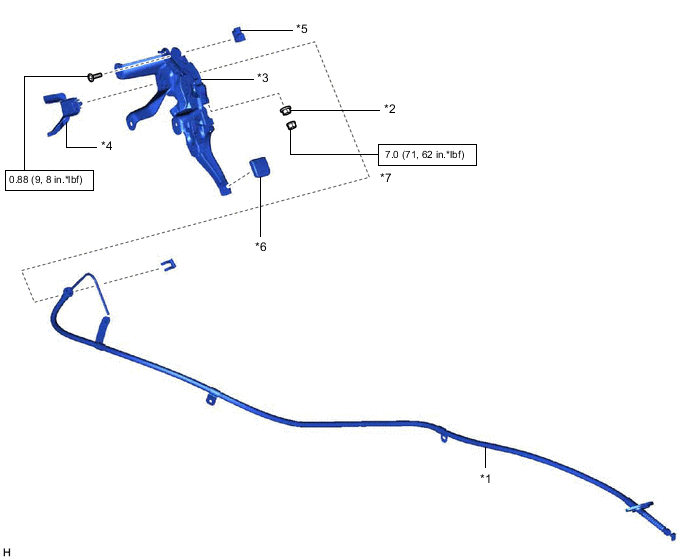

ILLUSTRATION
| *1 | NO. 1 PARKING BRAKE CABLE ASSEMBLY | *2 | NO. 1 WIRE ADJUSTING NUT |
| *3 | PARKING BRAKE CONTROL PEDAL ASSEMBLY | *4 | PARKING BRAKE PEDAL BRACKET PROTECTOR |
| *5 | PARKING BRAKE SWITCH ASSEMBLY | *6 | PARKING PEDAL PAD |
| *7 | LOCK NUT | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
