REAR BRAKE FLEXIBLE HOSE INSTALLATION

CAUTION / NOTICE / HINT

Note


  • Because the left and right rear flexible hoses are not interchangeable, verify the part number when installing the rear flexible hoses.

  • If the rear flexible hoses are to be reused, connect them after checking the identification marks placed when each hose was disconnected.

Tech Tips


  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL REAR FLEXIBLE HOSE

    Note

    When installing the rear flexible hose, minimize twisting of the hose.

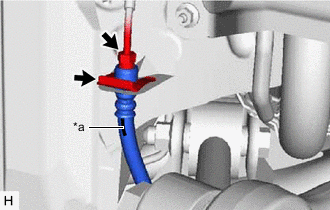

    1. A0022W3C01
      *a Identification Mark

      Install a new clip to the rear flexible hose.

      Note


      • Install the clip as far as it will go.

      • When installing the rear flexible hose, face the identification mark to the outside of the vehicle.

    2. Using a union nut wrench, connect the brake tube to the rear flexible hose while holding the rear flexible hose with a wrench.

      Torque:
      15.2 N*m  { 155 kgf*cm, 11 ft.*lbf }

      Note


      • Do not kink or damage the brake tube.

      • Do not allow any foreign matter such as dirt or dust to enter the brake tube from the connecting parts.

      • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

        Click here

    3. Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

      Torque:
      39.2 N*m  { 400 kgf*cm, 29 ft.*lbf }

      Note

      Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

  2. BLEED BRAKE LINE

    Click here

  3. INSTALL REAR WHEEL

    Torque:
    103 N*m  { 1050 kgf*cm, 76 ft.*lbf }
