REAR BRAKE COMPONENTS

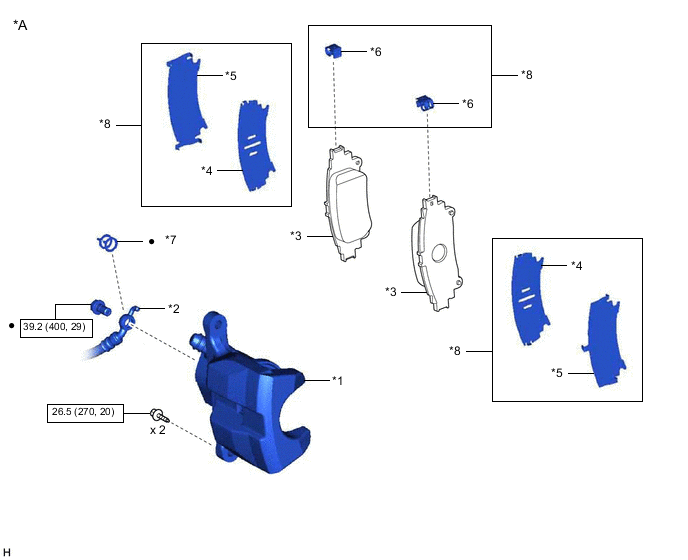

ILLUSTRATION
| *A | for Solid Disc | - | - |
| *1 | REAR DISC BRAKE CYLINDER ASSEMBLY | *2 | REAR FLEXIBLE HOSE |
| *3 | REAR DISC BRAKE PAD | *4 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM |
| *5 | REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM | *6 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE |
| *7 | GASKET | *8 | REAR DISC BRAKE ANTI-SQUEAL SHIM KIT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

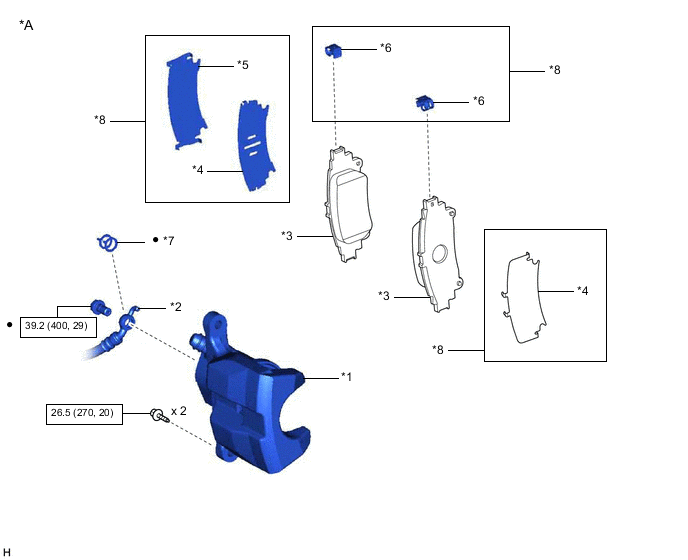

ILLUSTRATION
| *A | for Ventilated Disc | - | - |
| *1 | REAR DISC BRAKE CYLINDER ASSEMBLY | *2 | REAR FLEXIBLE HOSE |
| *3 | REAR DISC BRAKE PAD | *4 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM |
| *5 | REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM | *6 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE |
| *7 | GASKET | *8 | REAR DISC BRAKE ANTI-SQUEAL SHIM KIT |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

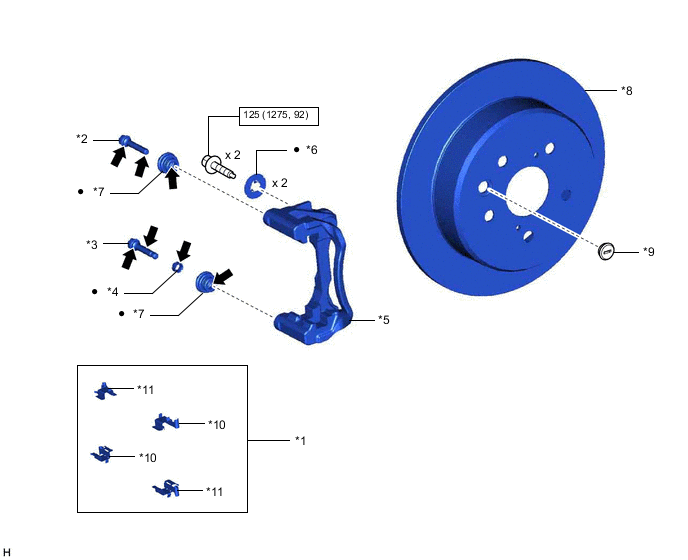

ILLUSTRATION
| *1 | REAR DISC BRAKE PAD SUPPORT PLATE | *2 | REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN |
| *3 | REAR NO. 2 DISC BRAKE CYLINDER SLIDE PIN | *4 | REAR DISC BRAKE CYLINDER SLIDE BUSHING |
| *5 | REAR DISC BRAKE CYLINDER MOUNTING | *6 | REAR NO. 1 DISC BRAKE CALIPER PLATE |
| *7 | REAR DISC BRAKE BUSHING DUST BOOT | *8 | REAR DISC |
| *9 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | *10 | REAR NO. 1 DISC BRAKE PAD SUPPORT PLATE |
| *11 | REAR NO. 2 DISC BRAKE PAD SUPPORT PLATE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |

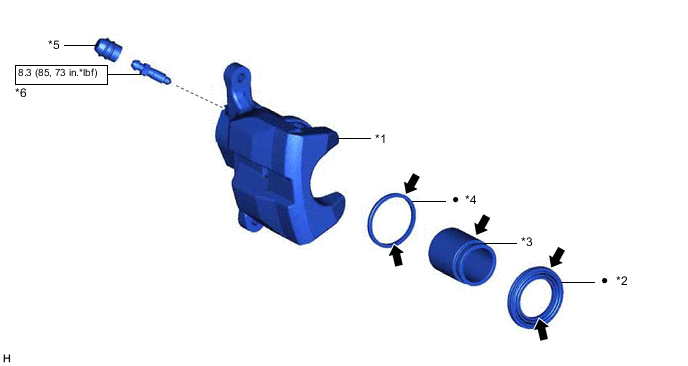

ILLUSTRATION
| *1 | REAR DISC BRAKE CYLINDER | *2 | CYLINDER BOOT |
| *3 | REAR DISC BRAKE PISTON | *4 | PISTON SEAL |
| *5 | REAR DISC BRAKE BLEEDER PLUG CAP | *6 | REAR DISC BRAKE BLEEDER PLUG |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Lithium soap base glycol grease | - | - |
