FRONT BRAKE FLEXIBLE HOSE REMOVAL

CAUTION / NOTICE / HINT

Note

If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

Tech Tips


  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE ABS MOTOR RELAY

    for LHD: Click here

    for RHD: Click here

  2. REMOVE FRONT WHEEL

  3. DRAIN BRAKE FLUID

    Note

    If brake fluid leaks onto any painted surface, immediately wash it off.

  4. REMOVE FRONT FLEXIBLE HOSE


    1. A011N4D

      Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.

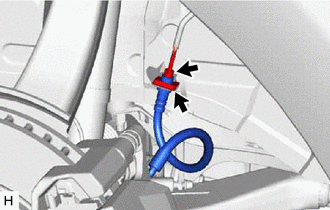

    2. A011Q2X

      Using a union nut wrench, disconnect the brake tube while holding the front flexible hose with a wrench.

      Note


      • Do not kink or damage the brake tube.

      • Do not allow any foreign matter such as dirt or dust to enter the brake tube from the connecting parts.

    3. Remove the clip and front flexible hose.
