BRAKE STROKE SIMULATOR CYLINDER REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the LHD and RHD.

  • The following procedure is for the LHD.

PROCEDURE


  1. REMOVE BRAKE MASTER WITH STROKE SIMULATOR CYLINDER ASSEMBLY

    for LHD: Click here

    for RHD: Click here

  2. REMOVE BRAKE STROKE SIMULATOR TUBE

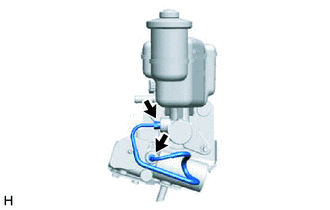

    1. A011POS

      Using a union nut wrench, remove the brake stroke simulator tube from the brake master cylinder sub-assembly and brake stroke simulator cylinder sub-assembly.

      Note


      • Do not allow any foreign matter such as dirt or dust to enter the brake stroke simulator tube from the connecting parts.

      • Do not kink or damage the brake stroke simulator tube.

  3. REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY

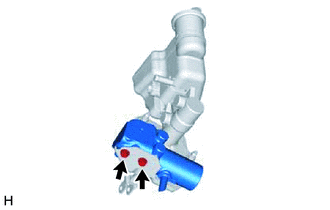

    1. A011PIZ

      Remove the 2 bolts and brake stroke simulator cylinder sub-assembly from the brake master cylinder sub-assembly.
