BRAKE STROKE SIMULATOR CYLINDER COMPONENTS

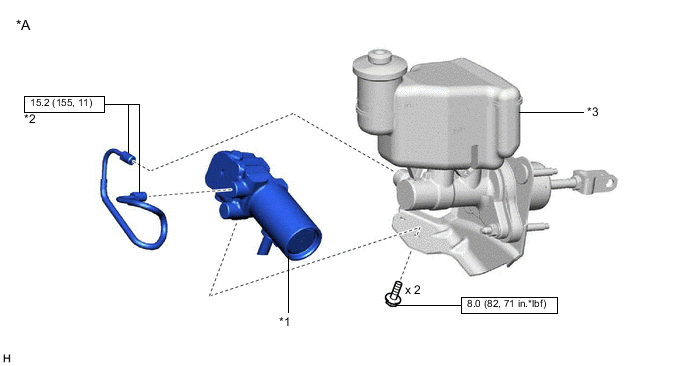

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY | *2 | BRAKE STROKE SIMULATOR TUBE |
| *3 | BRAKE MASTER CYLINDER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

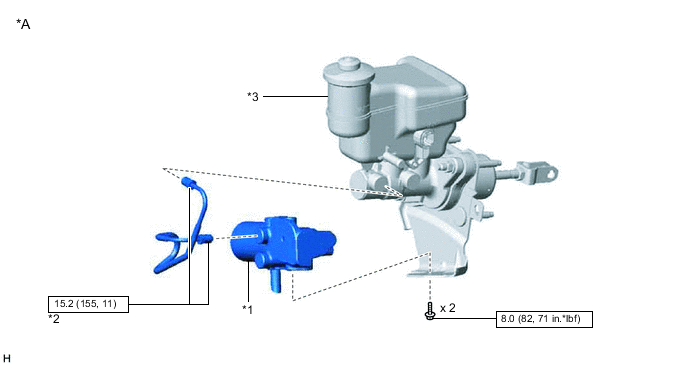

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY | *2 | BRAKE STROKE SIMULATOR TUBE |
| *3 | BRAKE MASTER CYLINDER SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
