REAR SPEED SENSOR INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

  • The speed sensor rotor is a component of the rear axle hub and bearing assembly. If the speed sensor rotor is malfunctioning, replace the rear axle hub and bearing assembly.

PROCEDURE


  1. INSTALL REAR SPEED SENSOR


    1. Insert the connector and grommet of the rear speed sensor into the inside of the vehicle through the hole in the wheel house.

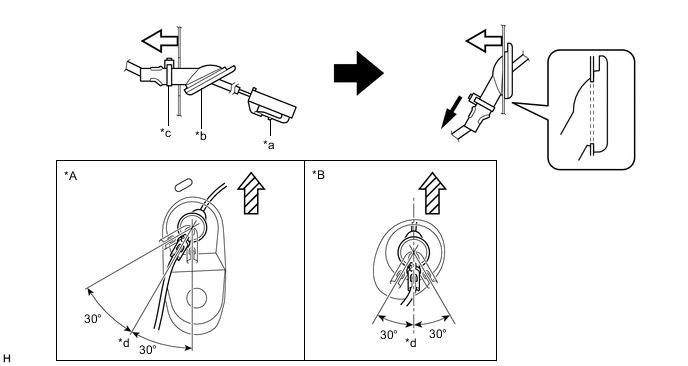

      A0022FRC01
      *A for LH Side *B for RH Side
      *a Connector *b Grommet
      *c Band Clamp *d Grommet Installation Range
      B003YHT Outside of Vehicle B003XOB Top of Vehicle

      Note

      Make sure the band clamp remains on the outside of the vehicle.

    2. Hold the tube of the grommet and pull it toward the outside of the vehicle, then secure the grommet to the vehicle body as shown in the illustration.

      Note


      • When pulling out the grommet, do not grip the sensor wire.

      • Secure the grommet in place within the range shown in the illustration.

    3. Install the 2 sensor clamps with the 2 nuts.

      Torque:
      6.0 N*m  { 61 kgf*cm, 53 in.*lbf }

      Note

      Do not twist the rear speed sensor wire harness when installing it.

    4. Return the rear wheel house liner to its original position.

    5. Install the 2 sensor clamps and rear speed sensor to the rear axle carrier sub-assembly and rear upper control arm assembly with the 3 bolts.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

      Note


      • Prevent foreign matter from attaching to the rear speed sensor tip.

      • Firmly insert the rear speed sensor body into the rear axle carrier sub-assembly before tightening the bolt.

      • After installing the rear speed sensor to the rear axle carrier sub-assembly, make sure that there is no clearance between the rear speed sensor stay and rear axle carrier sub-assembly. Also make sure that no foreign matter is stuck between the parts.

      • Do not twist the rear speed sensor wire harness when installing it.

    6. Connect the connector on the inside of the vehicle.

      Note

      Do not twist the rear speed sensor wire harness when installing it.

    7. for RH Side:


      1. Return the luggage compartment trim cover RH to its original position.

  2. INSTALL REAR WHEEL HOUSE LINER


    1. Install the rear wheel house liner with the 2 nuts.

  3. INSTALL REAR WHEEL

    Torque:
    103 N*m  { 1050 kgf*cm, 76 ft.*lbf }

  4. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

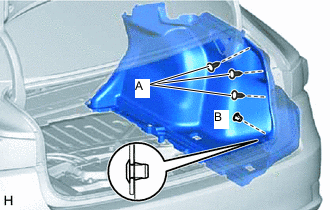

    1. A0021U0N01

      Install the luggage compartment trim cover RH with the 3 clips (A).

    2. Install a new clip (B).

    3. Install the 2 rope hook assemblies with the 2 bolts.

    4. Engage the 4 claws to close the 2 covers.

  5. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER (for RH Side)

    Click here

  6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (for RH Side)

    for Fixed Seat Type: Click here

    for Fold Down Seat Type: Click here

  7. INSTALL LUGGAGE COMPARTMENT TRIM BOX (for RH Side)

    Click here

  8. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for RH Side)

    Click here

  9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable from the negative (-) auxiliary battery terminal, some systems need to be initialized after the cable is reconnected.

    Click here

  10. INSTALL BATTERY SERVICE HOLE COVER LH

    Click here

  11. CHECK FOR SPEED SENSOR SIGNAL

    Click here
