FRONT SPEED SENSOR REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. PRECAUTION

   Note

   After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

   Click here

2. REMOVE FRONT WHEEL

3. REMOVE BATTERY SERVICE HOLE COVER LH

   Click here

4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   Note

   When disconnecting the cable from the negative (-) auxiliary battery terminal, some systems need to be initialized after the cable is reconnected.

   Click here

5. SEPARATE FRONT FENDER LINER

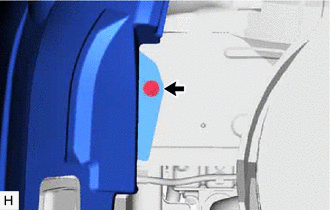

   1. Remove the screw and separate the front fender liner.

6. REMOVE SKID CONTROL SENSOR WIRE




   1.

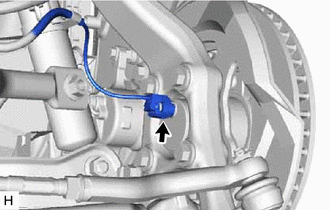

      Disconnect the connector from the front axle hub sub-assembly.

   2.

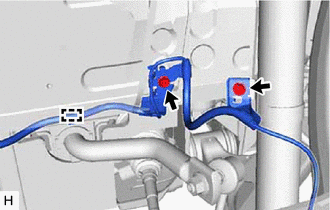

      Remove the 2 bolts and 2 sensor clamps from the front shock absorber assembly and body.

   3. Disengage the clamp from the front No. 1 stabilizer bracket.

   4. Turn back the front fender liner until the bolt can be removed.

   5.

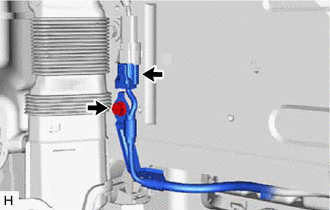

      Remove the bolt.

   6. Disconnect the connector to remove the skid control sensor wire.

7. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY

   Click here

8. REMOVE FRONT DISC

   Click here

9. REMOVE FRONT AXLE HUB SUB-ASSEMBLY

   Click here

   Tech Tips




   • If the sensor rotor needs to be replaced, replace the front axle hub sub-assembly.

   • The front speed sensor is a component of the front axle hub sub-assembly. If the front speed sensor is malfunctioning, replace the front axle hub sub-assembly.
