FRONT SPEED SENSOR COMPONENTS

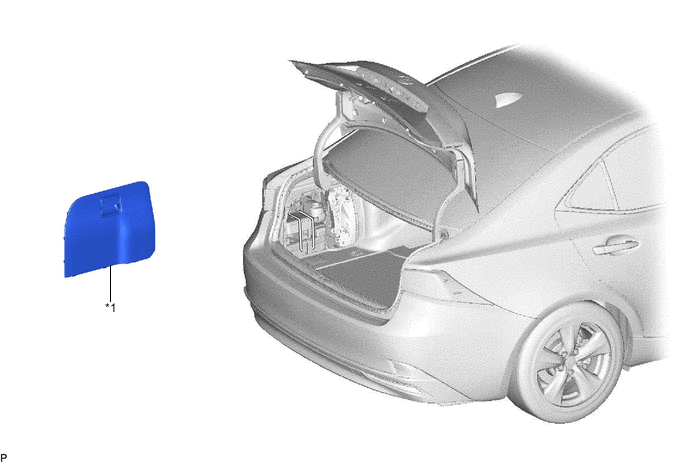

ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER LH | - | - |

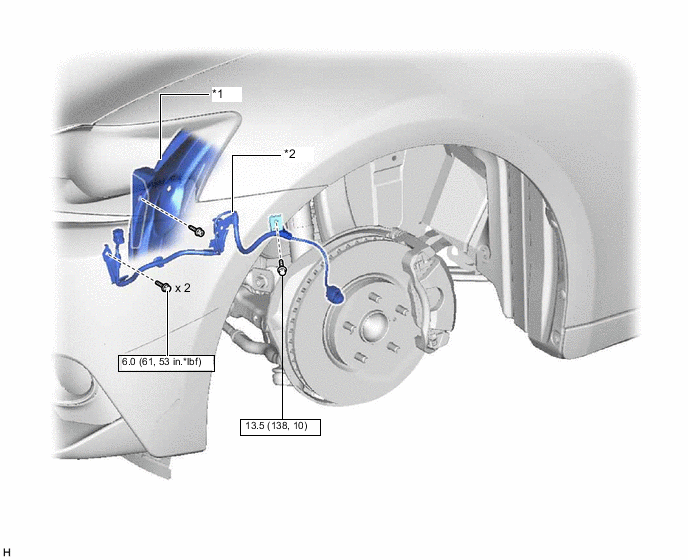

ILLUSTRATION
| *1 | FRONT FENDER LINER | *2 | SKID CONTROL SENSOR WIRE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

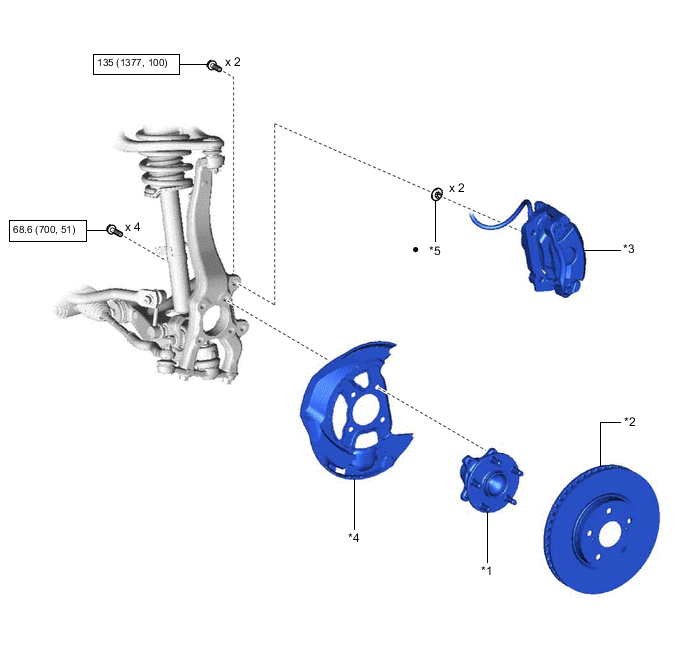

ILLUSTRATION
| *1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE CALIPER ASSEMBLY | *4 | FRONT DISC BRAKE DUST COVER |
| *5 | FRONT NO. 1 DISC BRAKE CALIPER PLATE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
