BRAKE ACTUATOR(for RHD) DISPOSAL

PROCEDURE


  1. DISPOSE OF BRAKE ACTUATOR ASSEMBLY

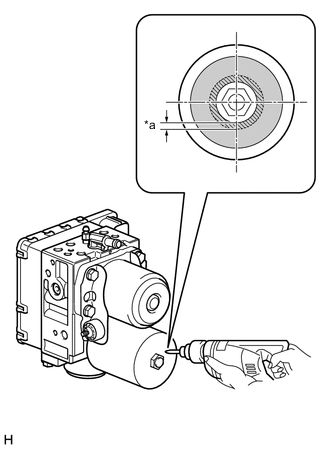

    1. A011PRMC01
      *a 5 to 10 mm (0.197 to 0.393 in.)
      A0021RS Caution Label
      B003YLR Area (A)

      Using a drill, slowly drill a hole approximately 10 mm deep at the base of the caution label indicated by the area (A) in the illustration to discharge the gas inside.

      CAUTION:

      Always use proper safety equipment and be careful when drilling because shards of metal may fly about.

      Tech Tips

      Nitrogen gas, which is colorless, odorless and harmless, will be discharged.
