ELECTRONICALLY CONTROLLED BRAKE SYSTEM Brake Control Warning Light Remains ON

DESCRIPTION

The skid control ECU assembly is connected to the combination meter assembly via CAN communication.

If the skid control ECU assembly stores a DTC, the brake warning light / yellow (minor malfunction) comes on in the combination meter assembly.

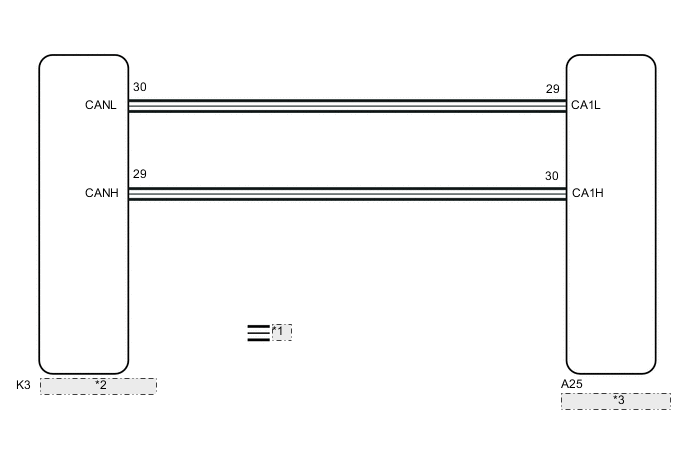

WIRING DIAGRAM

B003Y39E12
*1 CAN Communication Line
*2 Combination Meter Assembly
*3 Skid Control ECU Assembly

CAUTION / NOTICE / HINT

Note

When replacing the skid control ECU assembly, perform initialization and calibration of the linear solenoid valve.

Click here

PROCEDURE


  1. CHECK CAN COMMUNICATION SYSTEM


    1. Check if CAN communication system DTCs are output.

      Click here

      Result
      Result Proceed to
      DTCs are not output. A
      DTCs are output. B

    B

    INSPECT CAN COMMUNICATION SYSTEM Click here

    A

  2. CHECK IF SKID CONTROL ECU ASSEMBLY CONNECTOR IS SECURELY CONNECTED


    1. Check if the skid control ECU assembly connector is securely connected.

      OK
      The connector is securely connected.
      Result
      Proceed to
      OK
      NG

    NG

    CONNECT CONNECTOR TO SKID CONTROL ECU ASSEMBLY CORRECTLY

    OK

  3. CHECK AUXILIARY BATTERY


    1. Check the auxiliary battery voltage.

      Standard Voltage
      Tester Connection Condition Specified Condition
      Auxiliary battery Power switch on (IG) 11 to 14 V
      Auxiliary battery Power switch on (READY) 11 to 15.5 V
      Result
      Proceed to
      OK
      NG

    NG

    CHARGE OR REPLACE AUXILIARY BATTERY

    OK

  4. READ VALUE USING GTS (BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION))


    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Select the Data List on the GTS.

      Click here


      Chassis > ABS/VSC/TRC > Data List
      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      ECB Warning Light Brake warning light / yellow (minor malfunction) ON or OFF

      ON: Warning light on

      OFF: Warning light off

      		 ECB: Electronically Controlled Brake System

      Chassis > ABS/VSC/TRC > Data List
      Tester Display
      ECB Warning Light

    4. Check the GTS display condition of the brake warning light / yellow (minor malfunction).

      Result
      Result Proceed to
      Display of the Data List remains OFF. A
      Display of the Data List remains ON. B

      Tech Tips

      If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the parts.

      Click here


    A

    INSPECT METER / GAUGE SYSTEM Click here

    B

    REPLACE SKID CONTROL ECU ASSEMBLY for LHD: Click here
    REPLACE SKID CONTROL ECU ASSEMBLY for RHD: Click here
