BRAKE PEDAL(for LHD) REMOVAL

PROCEDURE


  1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT

    Click here

  2. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Click here

  3. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Click here

  4. REMOVE PUSH ROD PIN


    1. A0020K7

      Remove the clip and push rod pin.

  5. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY


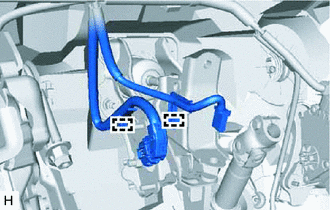

    1. A0022RZ

      Disengage the 2 clamps from the brake pedal support assembly.

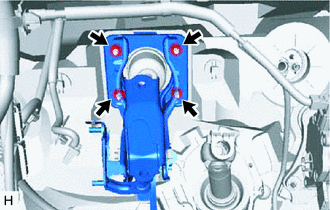

    2. A0022U3

      Remove the 4 nuts and brake pedal support assembly.

  6. REMOVE BRAKE PEDAL PAD


    1. Remove the brake pedal pad from the brake pedal support assembly.
