ELECTRONICALLY CONTROLLED BRAKE SYSTEM PARTS LOCATION

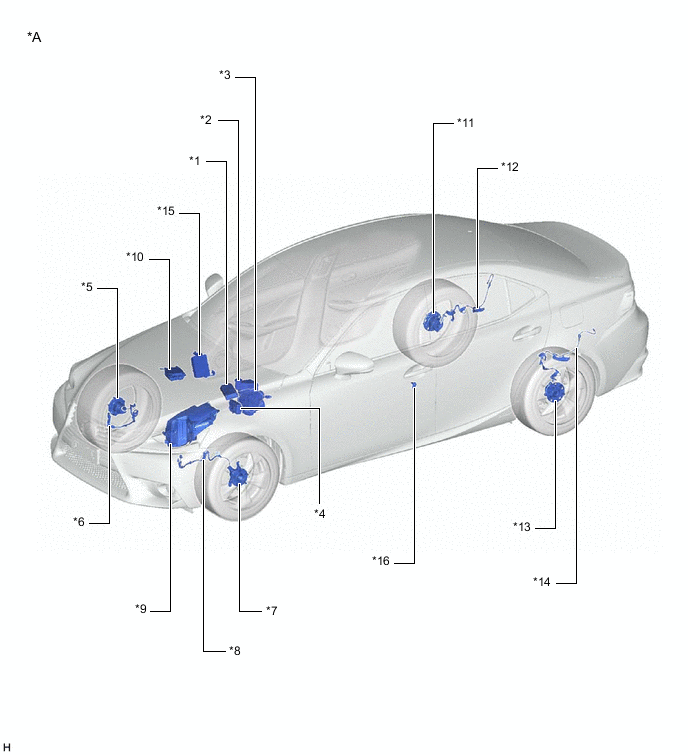

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SKID CONTROL ECU ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *3 | BRAKE ACTUATOR ASSEMBLY | *4 | NO. 3 ENGINE ROOM RELAY BLOCK - ABS MOTOR NO. 1 RELAY - ABS MOTOR NO. 2 RELAY |
| *5 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH - FRONT SPEED SENSOR RH |
*6 | SKID CONTROL SENSOR WIRE RH |
| *7 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH - FRONT SPEED SENSOR LH |
*8 | SKID CONTROL SENSOR WIRE LH |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - SEMICONDUCTOR PWR INTEGRATION ECU - ABS-MAIN 1 FUSE - ABS-MAIN 2 FUSE - ABS-MAIN 3 FUSE - ABS NO. 1 FUSE - ABS NO. 2 FUSE - STOP FUSE - P/I-B FUSE - MPX-B NO. 1 FUSE - ENG-IG NO. 2 FUSE |
*10 | POWER STEERING ECU ASSEMBLY |
| *11 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
*12 | REAR SPEED SENSOR RH |
| *13 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
*14 | REAR SPEED SENSOR LH |
| *15 | BRAKE CONTROL POWER SUPPLY ASSEMBLY | *16 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |

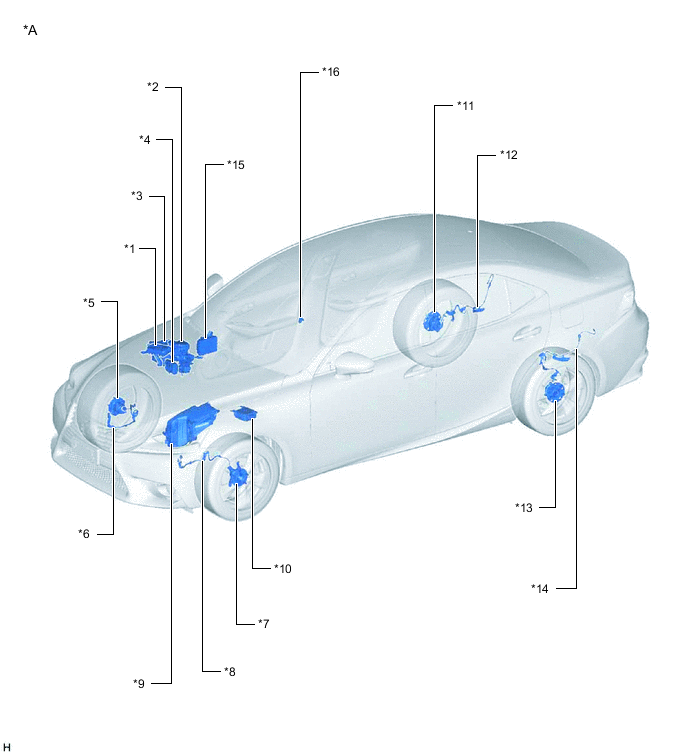

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SKID CONTROL ECU ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *3 | BRAKE ACTUATOR ASSEMBLY | *4 | NO. 3 ENGINE ROOM RELAY BLOCK - ABS MOTOR NO. 1 RELAY - ABS MOTOR NO. 2 RELAY |
| *5 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH - FRONT SPEED SENSOR RH |
*6 | SKID CONTROL SENSOR WIRE RH |
| *7 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH - FRONT SPEED SENSOR LH |
*8 | SKID CONTROL SENSOR WIRE LH |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - SEMICONDUCTOR PWR INTEGRATION ECU - ABS-MAIN 1 FUSE - ABS-MAIN 2 FUSE - ABS-MAIN 3 FUSE - ABS NO. 1 FUSE - ABS NO. 2 FUSE - STOP FUSE - P/I-B FUSE - MPX-B NO. 1 FUSE - ENG-IG NO. 2 FUSE |
*10 | POWER STEERING ECU ASSEMBLY |
| *11 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
*12 | REAR SPEED SENSOR RH |
| *13 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
*14 | REAR SPEED SENSOR LH |
| *15 | BRAKE CONTROL POWER SUPPLY ASSEMBLY | *16 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |

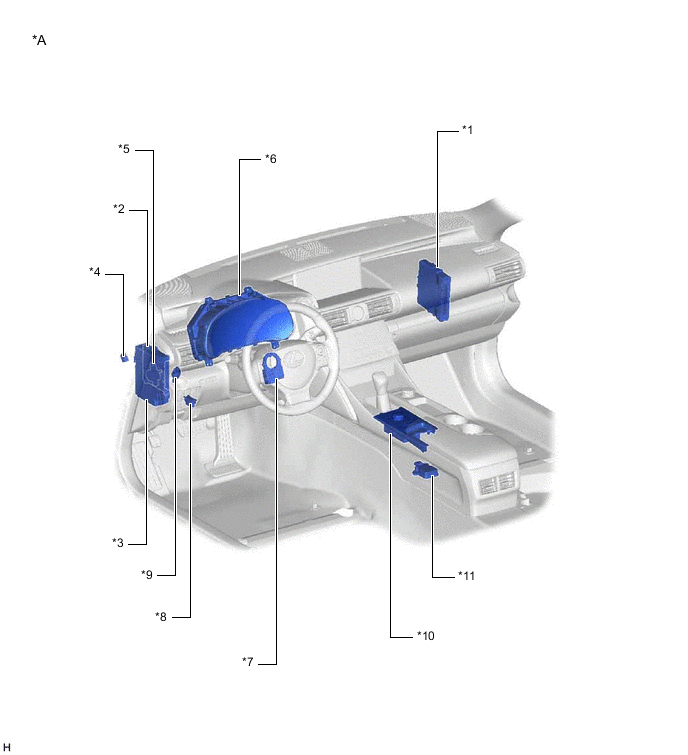

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - CAPACITOR FUSE - ECU-IG1 NO. 1 FUSE - IG1 NO. 2 FUSE - IGN NO. 2 FUSE |
*4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC OFF MESSAGE) - METER BUZZER |
| *7 | STEERING ANGLE SENSOR | *8 | DLC3 |
| *9 | STOP LIGHT SWITCH ASSEMBLY | *10 | COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
| *11 | YAW RATE AND ACCELERATION SENSOR | - | - |

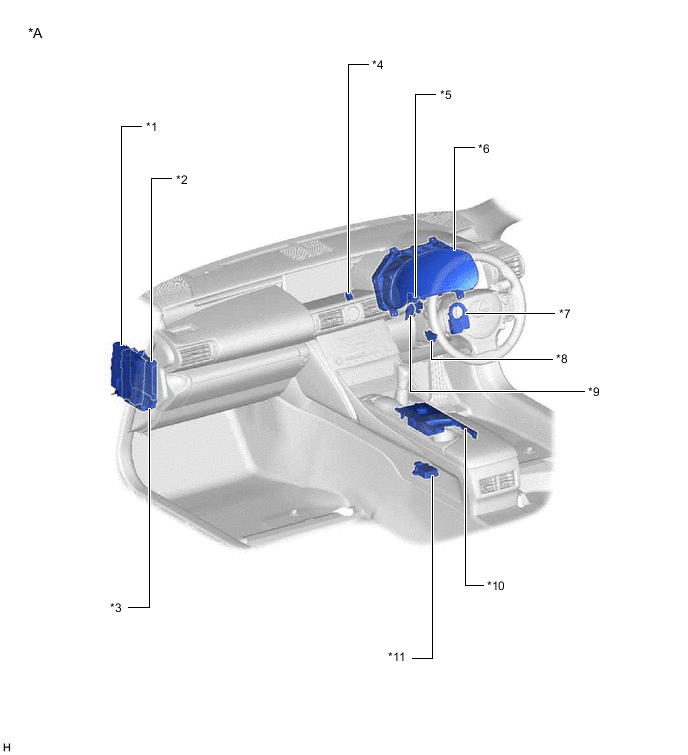

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - CAPACITOR FUSE - ECU-IG1 NO. 1 FUSE - IG1 NO. 2 FUSE - IGN NO. 2 FUSE |
*4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC OFF MESSAGE) - METER BUZZER |
| *7 | STEERING ANGLE SENSOR | *8 | DLC3 |
| *9 | STOP LIGHT SWITCH ASSEMBLY | *10 | COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
| *11 | YAW RATE AND ACCELERATION SENSOR | - | - |
