TIRE PRESSURE WARNING RECEIVER COMPONENTS
ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER LH | - | - |
ILLUSTRATION
| *A | for Fold Down Seat Type | - | - |
| *1 | REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR SIDE SEATBACK ASSEMBLY LH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION

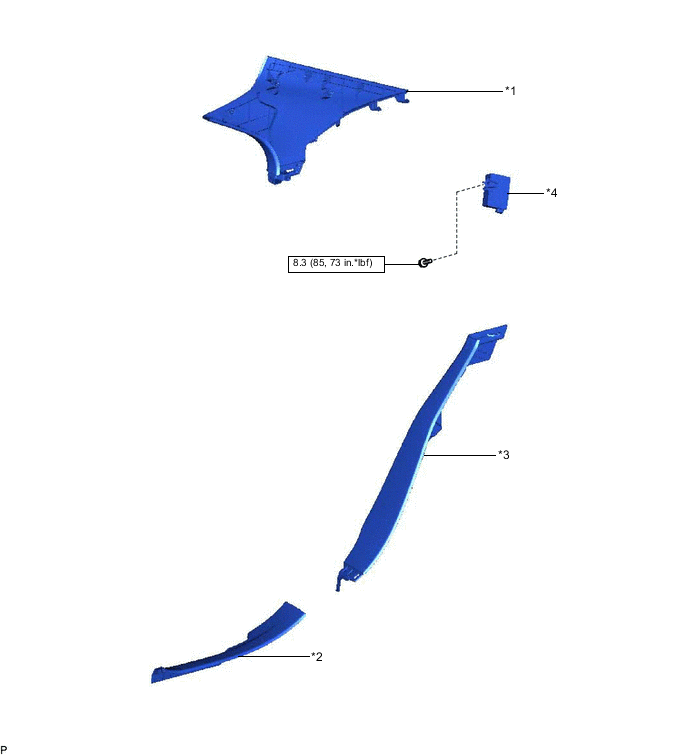

| *1 | INNER ROOF SIDE GARNISH ASSEMBLY LH | *2 | REAR DOOR SCUFF PLATE LH |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
