REAR STABILIZER BAR REMOVAL

PROCEDURE


  1. REMOVE REAR WHEEL

  2. REMOVE REAR STABILIZER LINK ASSEMBLY LH


    1. B003XYI

      Remove the 2 nuts and rear stabilizer link assembly LH.

      Tech Tips

      If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

  3. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    Tech Tips

    Perform the same procedure as for the LH side.

  4. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Click here

  5. REMOVE REAR STABILIZER BAR SUB-ASSEMBLY

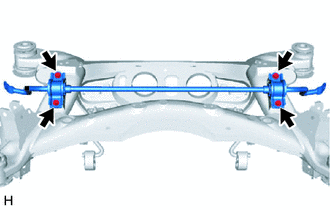

    1. B003Y8B

      Remove the 4 bolts, rear stabilizer bar sub-assembly and 2 rear No. 1 stabilizer bar brackets from the rear suspension member sub-assembly.

    2. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.

    3. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
