TOE CONTROL LINK INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. Click here

   TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY



   1.

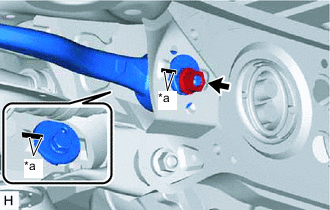

      *a

      Matchmark

      Using the toe adjust cam sub-assembly, No. 2 toe adjust plate and nut, temporarily install the toe control link sub-assembly to the rear suspension member sub-assembly.

      Note:


      • Insert the toe adjust cam sub-assembly from the front of the vehicle.

      • Hold the toe adjust cam sub-assembly while rotating the nut.

      • Align the matchmarks on the toe adjust cam sub-assembly, No. 2 toe adjust plate and rear suspension member sub-assembly.

   2. Install the toe control link sub-assembly to the rear axle assembly with a new nut.

      70 N*m

      714 kgf*cm

      52 ft.*lbf

2. Click here

   STABILIZE SUSPENSION

   Click here

3. Click here

   INSTALL TOE CONTROL LINK SUB-ASSEMBLY




   1. Install the toe control link sub-assembly (rear suspension member sub-assembly side) with the nut.

      117 N*m

      1193 kgf*cm

      86 ft.*lbf

      Note:

      Hold the toe adjust cam sub-assembly while rotating the nut.

4. Click here

   INSTALL REAR WHEEL

   103 N*m

   1050 kgf*cm

   76 ft.*lbf

5. Click here

   INSPECT AND ADJUST REAR WHEEL ALIGNMENT

   Click here
