TOE CONTROL LINK INSPECTION

PROCEDURE


  1. INSPECT TOE CONTROL LINK SUB-ASSEMBLY


    1. Inspect the turning torque of the ball joint.

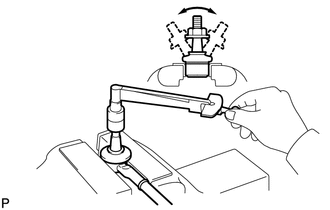

      1. A011M4D

        Secure the toe control link sub-assembly in a vise using aluminum plates.

        Note

        Do not overtighten the vise.

      2. Install the nut to the toe control link sub-assembly stud.

      3. Move the stud back and forth several times. Using a torque wrench, turn the stud continuously at a rate of 3 to 5 seconds per turn and take the torque reading on the 5th turn.

        Standard Turning Torque
        0.98 to 4.90 N*m (10 to 49 kgf*cm, 8.7 to 43 in.*lbf)

        Tech Tips

        If the turning torque is not within the specified range, replace the toe control link sub-assembly with a new one.

    2. Inspect the dust cover.


      1. Check that the dust cover is not cracked and that there is no grease on it.

        Tech Tips

        If the dust cover is cracked or there is grease on it, replace the toe control link sub-assembly with a new one.
