REAR LOWER ARM REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE REAR WHEEL

  2. SEPARATE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

    Click here

  3. SEPARATE TOE CONTROL LINK SUB-ASSEMBLY

    Click here

  4. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY


    1. B003XRJ

      Remove the bolt and nut, and separate the rear No. 1 suspension arm assembly from the rear axle assembly.

      Note

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

    2. B003XSM

      Remove the bolt and nut, and remove the rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.

      Note

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  5. REMOVE REAR SUSPENSION MEMBER BRACE


    1. B003XXA

      Remove the 2 bolts and rear suspension member brace from the rear suspension member sub-assembly.

  6. REMOVE REAR STABILIZER LINK ASSEMBLY

    Click here

  7. SEPARATE REAR SHOCK ABSORBER ASSEMBLY

    Click here

  8. REMOVE REAR COIL SPRING

    Click here

  9. REMOVE REAR UPPER COIL SPRING INSULATOR

    Click here

  10. REMOVE REAR LOWER COIL SPRING INSULATOR

    Click here

  11. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY


    1. for Type A:

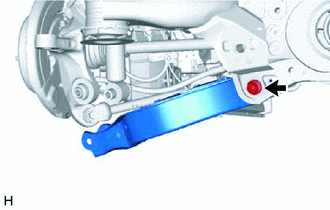

      1. A01CZP7

        Remove the bolt, nut, washer and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.

        Note

        Because the bolt has its own stopper, do not turn the bolt. Loosen the nut with the bolt secured.

    2. for Type B:


      1. Remove the bolt, nut and rear No. 2 suspension arm assembly from the rear suspension member sub-assembly.

        Note

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
