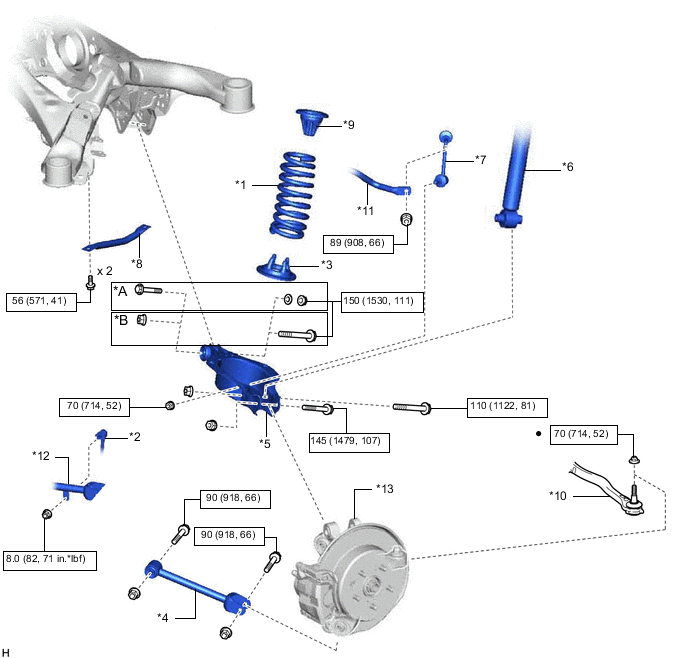

REAR LOWER ARM COMPONENTS
ILLUSTRATION
| *A | for Type A | *B | for Type B |
| *1 | REAR COIL SPRING | *2 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY |
| *3 | REAR LOWER COIL SPRING INSULATOR | *4 | REAR NO. 1 SUSPENSION ARM ASSEMBLY |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *6 | REAR SHOCK ABSORBER ASSEMBLY |
| *7 | REAR STABILIZER LINK ASSEMBLY | *8 | REAR SUSPENSION MEMBER BRACE |
| *9 | REAR UPPER COIL SPRING INSULATOR | *10 | TOE CONTROL LINK SUB-ASSEMBLY |
| *11 | REAR STABILIZER BAR | *12 | REAR NO. 1 UPPER CONTROL ARM ASSEMBLY |
| *13 | REAR AXLE ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
