REAR UPPER ARM REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Click here

  2. REMOVE REAR NO. 1 UPPER CONTROL ARM ASSEMBLY

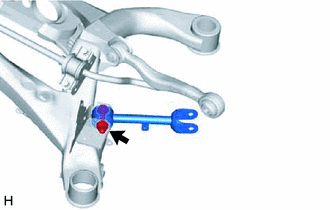

    1. B003XOJ

      Remove the bolt, nut, washer and rear No. 1 upper control arm assembly from the rear suspension member sub-assembly.

      Note

      Because the bolt has its own stopper, do not turn the bolt. Loosen the nut with the bolt secured.

  3. REMOVE REAR UPPER CONTROL ARM ASSEMBLY

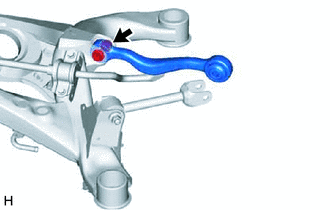

    1. B003XQB

      Remove the bolt, nut, washer and rear upper control arm assembly from the rear suspension member sub-assembly.

      Note

      Because the bolt has its own stopper, do not turn the bolt. Loosen the nut with the bolt secured.
