FRONT SUSPENSION MEMBER COMPONENTS

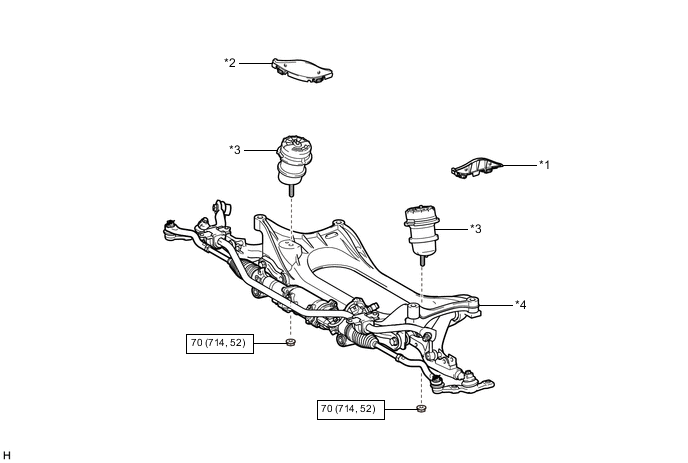

ILLUSTRATION
| *1 | ENGINE UNDER COVER SUB-ASSEMBLY LH | *2 | ENGINE UNDER COVER SUB-ASSEMBLY RH |
| *3 | FRONT ENGINE MOUNTING INSULATOR | *4 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

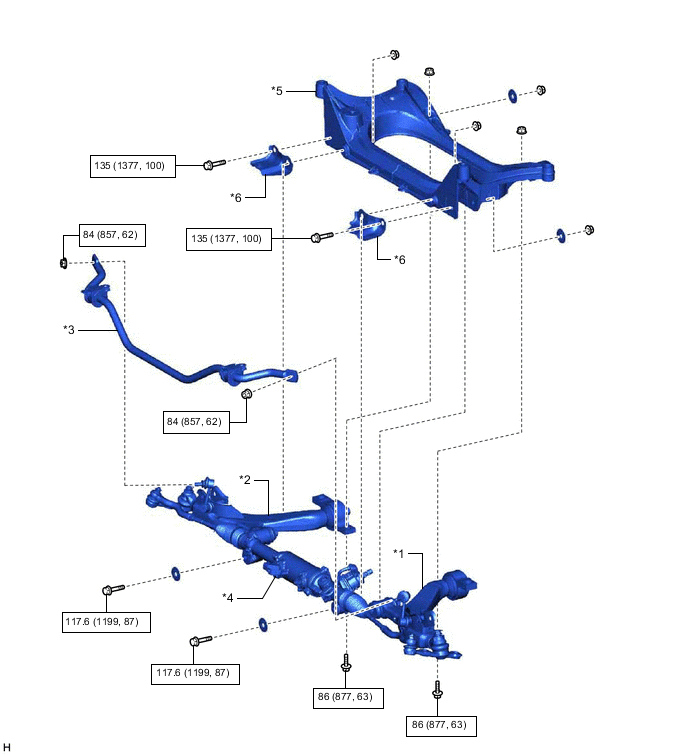

ILLUSTRATION
| *1 | FRONT LOWER SUSPENSION ARM ASSEMBLY LH | *2 | FRONT LOWER SUSPENSION ARM ASSEMBLY RH |
| *3 | FRONT STABILIZER BAR | *4 | POWER STEERING LINK ASSEMBLY |
| *5 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *6 | FRONT SUSPENSION MEMBER BRACE PLATE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
