TIRE PRESSURE WARNING SYSTEM PARTS LOCATION

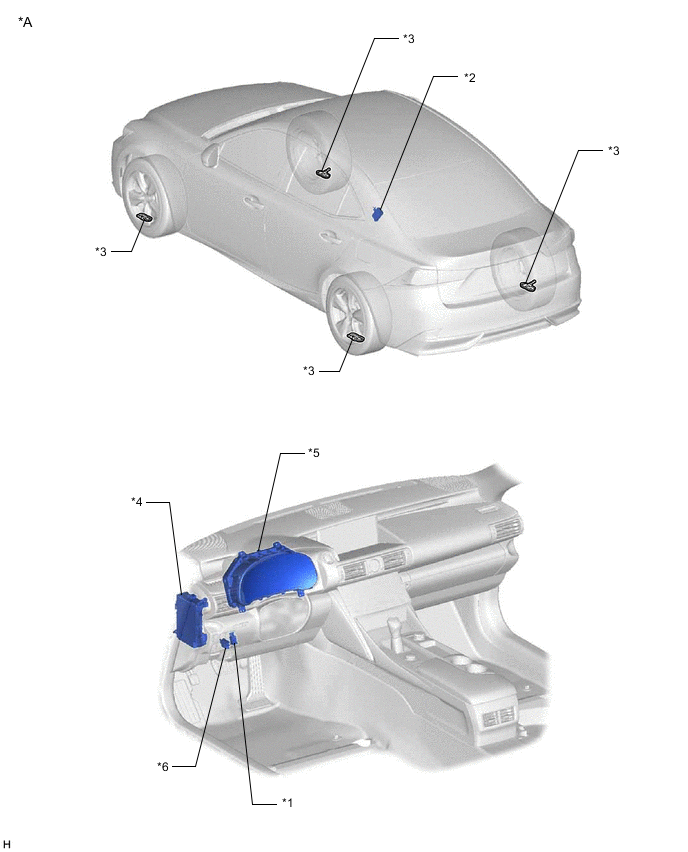

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | TIRE PRESSURE WARNING RESET SWITCH | *2 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT |
*6 | DLC3 |

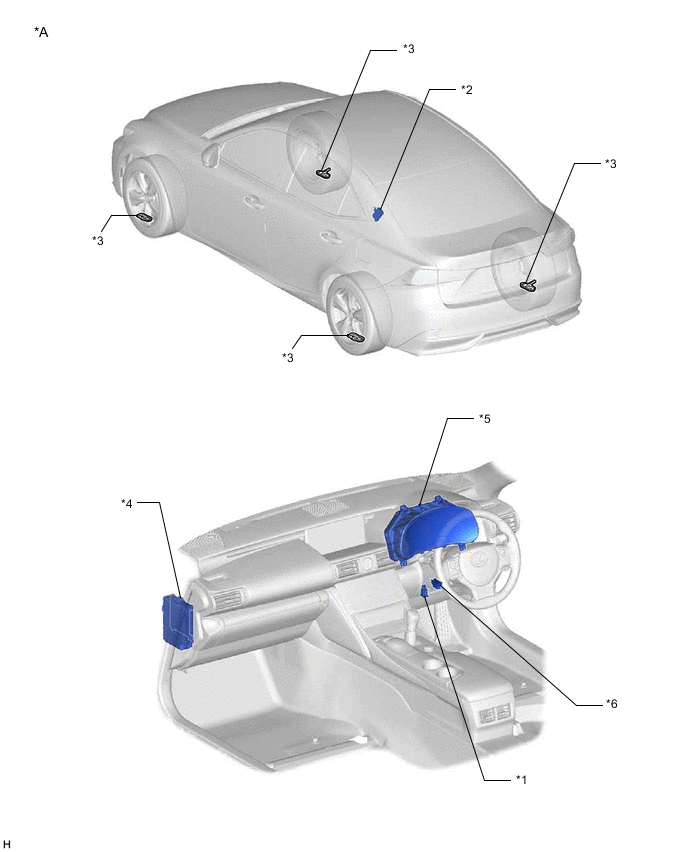

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | TIRE PRESSURE WARNING RESET SWITCH | *2 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT |
*6 | DLC3 |
